Bray AU Series Industrial Electric Actuator
Bray AU Series Industrial Electric Actuator
SKU:ACT-2abd19
Achieve precise and durable valve control with the Bray AU Series Industrial Electric Actuator, designed for reliability in industrial settings.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Bray AU Series Industrial Electric Actuator
$1,299.99
Quantity: 1
Claim Your Seller Account
Bray AU Series Industrial Electric Actuator
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

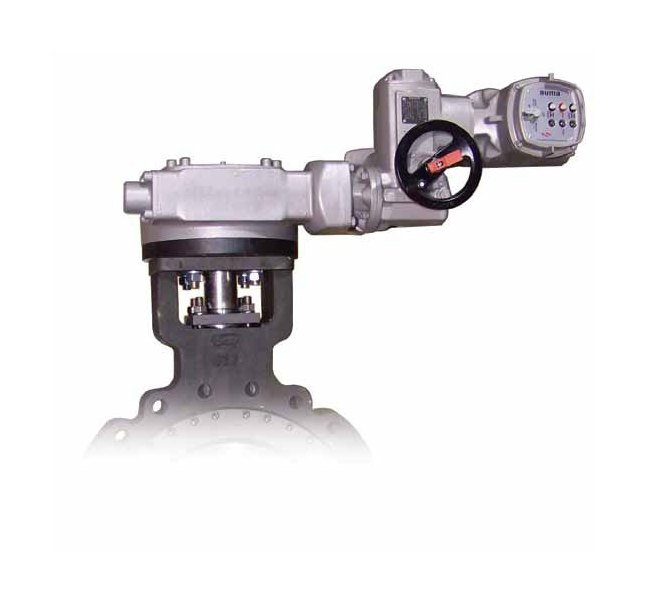

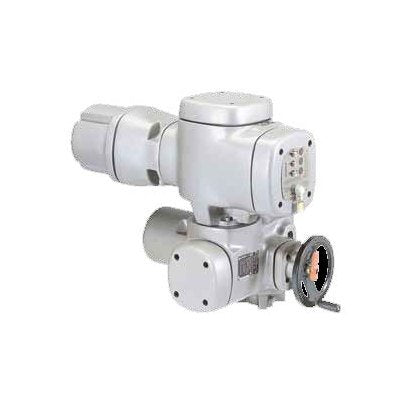

The Bray AU Series Industrial Electric Actuator delivers precise and durable control specifically designed for quarter turn valves like butterfly and ball valves. With a compact industrial housing that meets NEMA 4X (IP 67) standards for outdoor use, this actuator boasts integrated controls, a manual override handwheel, and essential features like auxiliary switches, torque switches, position indicator, and a heater. Offering a running torque of 21300 in·lbs, 2407 nm, and a duty cycle of 15 min. continuous max six starts/minute, the Bray AU Series ensures seamless operation with 15,000 Full Stroke Cycles and 2,500,000 Repositions at Rated Running Torque. With a temperature range from -20 to 175 °F | -29 to 79°C, this actuator is a robust solution for industrial applications.
Product Specifications
Specifications Control Type
On/Off or Floating
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features
Auxiliary Switches | Heater | On/Off
Specifications Full Load Current Draw
6.5 A
Specifications Heater
120 V internal (12.5 W)
Specifications Input Signal
115 VAC ±10% at 60 Hz
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
21300 in·lbs | 2407 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC

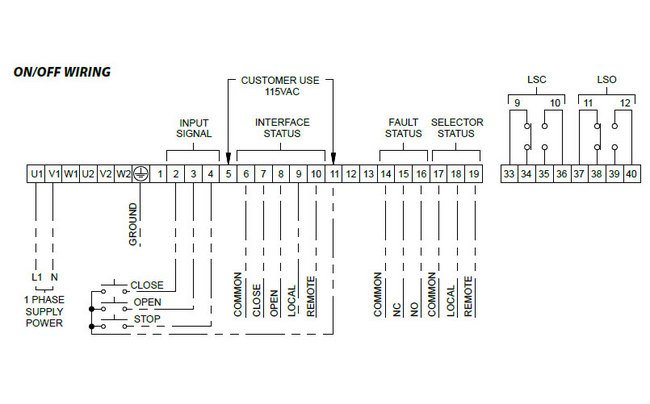

Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
21300 in·lbs
Specifications Weight
146 lbs | 55 kg
