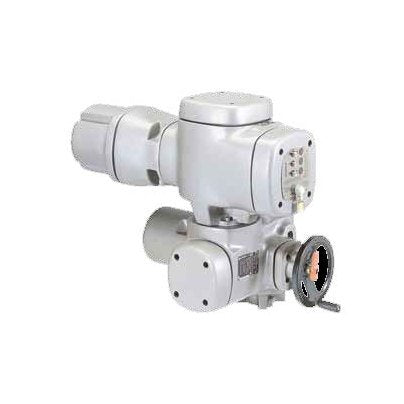

Bray AU Series Industrial Electric Actuator
Bray AU Series Industrial Electric Actuator
SKU:ACT-89abf7
Optimal control for quarter-turn valves. Durable, precise, and compact design. NEMA 4X (IP67) rated for outdoor use. AU Series actuators for industrial applications.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Bray AU Series Industrial Electric Actuator
$2,399.99
Quantity: 1
Claim Your Seller Account
Bray AU Series Industrial Electric Actuator
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

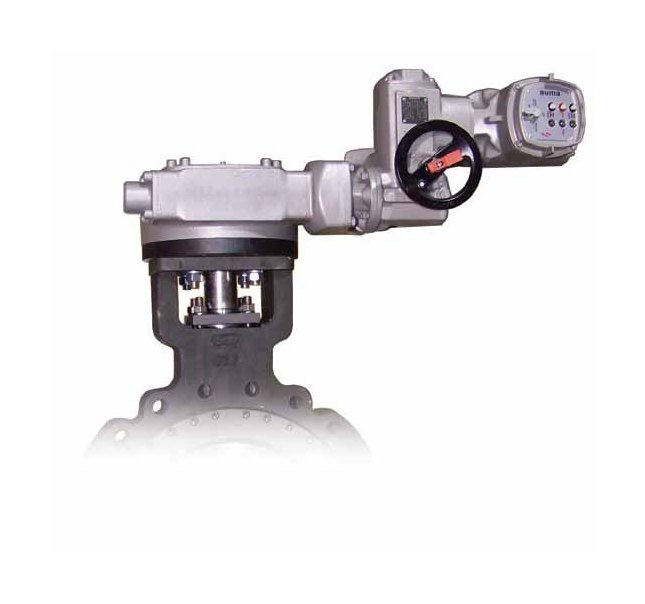

The Bray AU Series Industrial Electric Actuator offers precise and durable control for quarter-turn valves, including rubber seated butterfly valves, high-performance butterfly valves, and industrial ball valves. Featuring a compact industrial housing rated to NEMA 4X (IP67) standards for outdoor use, these actuators come equipped with integrated controls, manual override handwheels, and thermal overload protection. With standard 120V single-phase models and optional three-phase units, the AU Series includes essential features like auxiliary switches, torque switches, position indicators, and a heater. Modulating units provide standard position feedback, while direct mounting onto Bray valves eliminates the need for adapter brackets.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Control Type
Proportional
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features

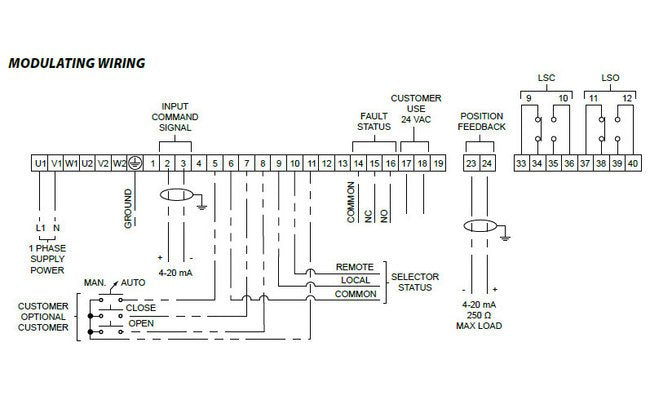

Auxiliary Switches | Heater | Modulating
Specifications Full Load Current Draw
6.5 A
Specifications Heater
24 V internal (12.5 W)
Specifications Input Signal
4 to 20 mA
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
21300 in·lbs | 2407 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC
Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
21300 in·lbs
Specifications Weight
146 lbs | 55 kg
