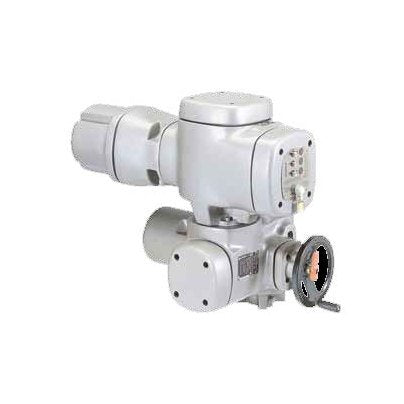

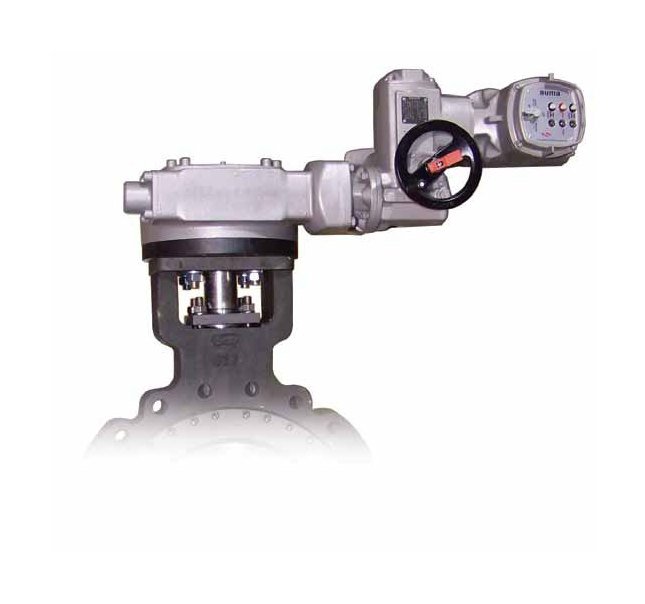

The Bray AU Series Industrial Electric Actuator offers precise and durable control for quarter turn valves, including compatibility with rubber seated butterfly valves, high performance butterfly valves, and industrial ball valves. Designed with a compact industrial housing meeting NEMA 4X (IP 67) standards for outdoor applications, this actuator features integrated controls, a manual override handwheel, and thermal overload protection. With standard and optional three-phase models available, the AU Series includes essential components such as auxiliary switches, torque switches, position indicators, and a heater. Modulating units provide position feedback, while easy mounting directly to Bray valves eliminates the need for adapter brackets.
Product Specifications
Specifications Control Type
Proportional
Specifications Cycles
15,000 Full Stroke Cycles; 2,500,000 Repositions at Rated Running Torque
Specifications Duty Cycle
15 min. continuous max six starts/minute
Specifications Enclosure
NEMA 4, 4X, IP 67
Specifications Features
Auxiliary Switches | Heater | Modulating
Specifications Full Load Current Draw
6.5 A
Specifications Heater
24 V internal (12.5 W)
Specifications Input Signal
4 to 20 mA
Specifications Locked Rotor Current Draw
14 A
Specifications Motor Protection
PTC Thermistors
Specifications Operating Time
60 sec
Specifications Power Requirements
115 VAC ±10% at 60 Hz, Single Phase
Specifications Running Torque
70800 in·lbs | 8000 nm
Specifications Temperature Limits
-20 to 175 ºF | -29 to 79 ºC
Specifications Terminals
AUMA plug/ socket connector with screw type connection
Specifications Torque
70800 in·lbs
Specifications Weight
270 lbs | 101 kg
