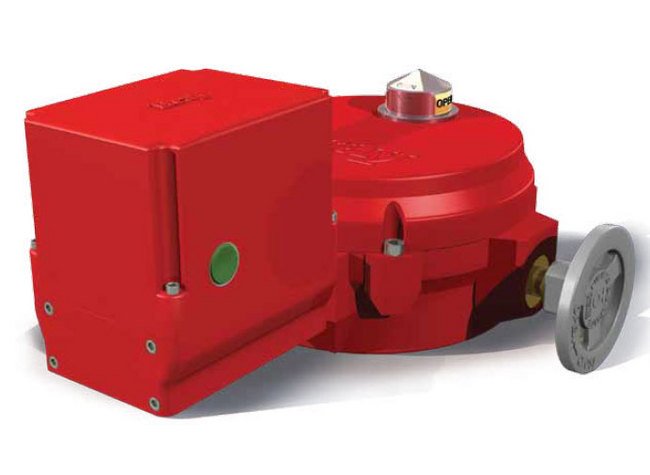

Bray Series 70 Actuator Battery Backup
Bray Series 70 Actuator Battery Backup
SKU:ACT-d822bb
Ensure valve positioning during power loss with Bray Series 70 Actuator Battery Backup. Factory-installed with advanced circuitry for continuous monitoring and visual indicators.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Bray Series 70 Actuator Battery Backup
$349.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Actuator Battery Backup
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Actuator Battery Backup is a reliable solution for ensuring valve or damper positioning during power loss. With factory-installed and wired components, this Battery Backup features advanced circuitry for continuous battery monitoring, visual LED indication, and remote monitoring capabilities. Housed in a sturdy NEMA 4X enclosure, this Battery Backup offers application flexibility, cost-effectiveness, and ease of installation, reducing field costs and providing peace of mind. Suitable for outdoor use within specified temperature limits, the Bray Series 70 Actuator Battery Backup is a crucial addition to your automation system.
Product Specifications
Specifications Battery Charging Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Battery Strength Alarm Contact Ratings
2 A
Specifications Charging Of Batteries
Continuous
Specifications Conduit Entries Wiring
3/4" NPT
Specifications Discharging Of Batteries
4.2A (Only upon loss of input power)
Specifications Features
Auxiliary Switches | Heater | Modulating | On/Off
Specifications Housing
Die Cast aluminum, Polyester finish, Nema 4X (IP 65)
Specifications Life Of Batteries
4 years, depended on ambient Temperature
Specifications Operating Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Power Requirements
24 to 27 VAC
Specifications Storage Temperature Limits
-40 to 140 ºF | -40 to 60 ºC
Specifications Terminal Block Wiring
Max 14 AWG
Specifications Torque
2000 lb·in
Specifications Type Of Batteries
SLA (Sealed Lead Acid) Power Sonic PS1212 or Equal
