Bray Series 70 Actuator Battery Backup
Bray Series 70 Actuator Battery Backup
SKU:ACT-b9bcd7
Cost-effective Bray Series 70 Actuator Battery Backup with advanced monitoring and return-to-position feature
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Bray Series 70 Actuator Battery Backup
$349.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Actuator Battery Backup
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

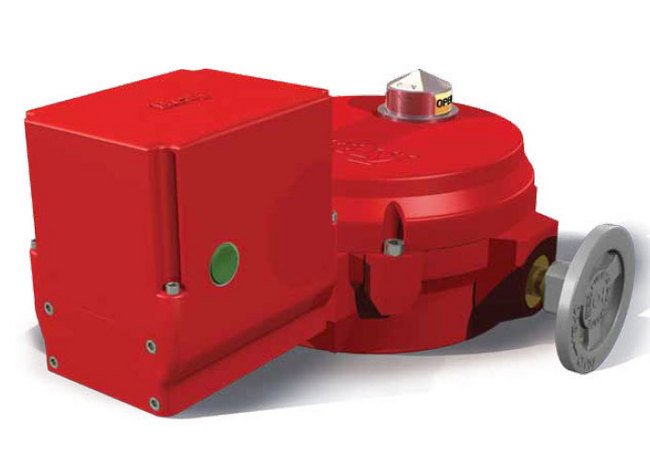

Ensure continuous operation of your Bray Series 70 Actuator with the Battery Backup option. This cost-effective solution provides visual and electronic low battery indication, NEMA 4X enclosure for outdoor use, and automated return-to-position feature. The advanced circuitry monitors battery strength, ensuring reliable performance when power is lost. With features like field selectable positions and easy installation, this Battery Backup enhances application flexibility and reduces installation costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Battery Charging Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Battery Strength Alarm Contact Ratings
2 A
Specifications Charging Of Batteries
Continuous
Specifications Conduit Entries Wiring
3/4" NPT
Specifications Discharging Of Batteries
4.2A (Only upon loss of input power)
Specifications Features
Auxiliary Switches | Heater | Modulating | On/Off
Specifications Housing
Die Cast aluminum, Polyester finish, Nema 4X (IP 65)
Specifications Life Of Batteries
4 years, depended on ambient Temperature
Specifications Operating Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Power Requirements
24 to 27 VAC
Specifications Storage Temperature Limits
-40 to 140 ºF | -40 to 60 ºC
Specifications Terminal Block Wiring
Max 14 AWG
Specifications Torque
5000 lb·in
Specifications Type Of Batteries
SLA (Sealed Lead Acid) Power Sonic PS1212 or Equal
