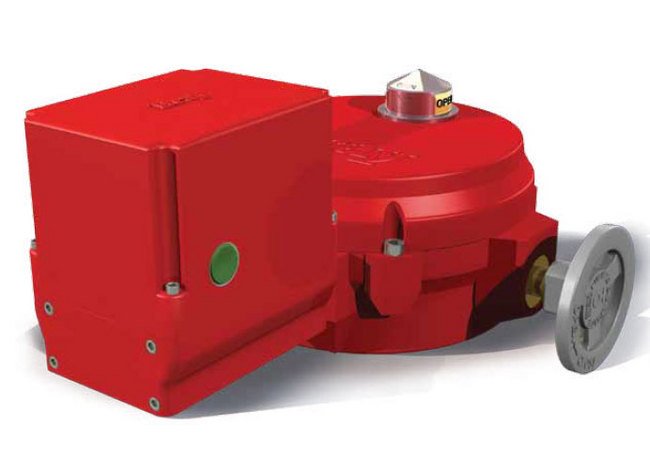

Bray Series 70 Actuator Battery Backup
Bray Series 70 Actuator Battery Backup
SKU:ACT-d3e103
Ensure uninterrupted power with the Bray Series 70 Actuator Battery Backup. Field-selectable modes, visual indication, and sturdy construction for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bray Series 70 Actuator Battery Backup
$299.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Actuator Battery Backup
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Actuator Battery Backup is a specially designed solution for ensuring continuous operation in case of power loss. Installation is hassle-free with factory pre-wiring in a NEMA 4x enclosure. Offering field-selectable modes, visual battery strength indication, and application flexibility, this battery backup reduces installation costs and provides reliable backup power for both On/Off and modulating actuators. With sturdy construction and advanced circuitry, it guarantees seamless operation in various environmental conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Battery Charging Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Battery Strength Alarm Contact Ratings
2 A
Specifications Charging Of Batteries
Continuous
Specifications Conduit Entries Wiring
3/4" NPT
Specifications Current Draw Actuator W Bbu
75 VA
Specifications Discharging Of Batteries
4.2A (Only upon loss of input power)
Specifications Features
Auxiliary Switches | Modulating | On/Off
Specifications Housing
Die Cast aluminum, Polyester finish, Nema 4X (IP 65)
Specifications Life Of Batteries
4 years, depended on ambient Temperature
Specifications Operating Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Power Requirements
24 to 27 VAC
Specifications Storage Temperature Limits
-40 to 140 ºF | -40 to 60 ºC
Specifications Terminal Block Wiring
Max 14 AWG
Specifications Torque
5000 lb·in
Specifications Type Of Batteries
SLA (Sealed Lead Acid) Power Sonic PS1212 or Equal
