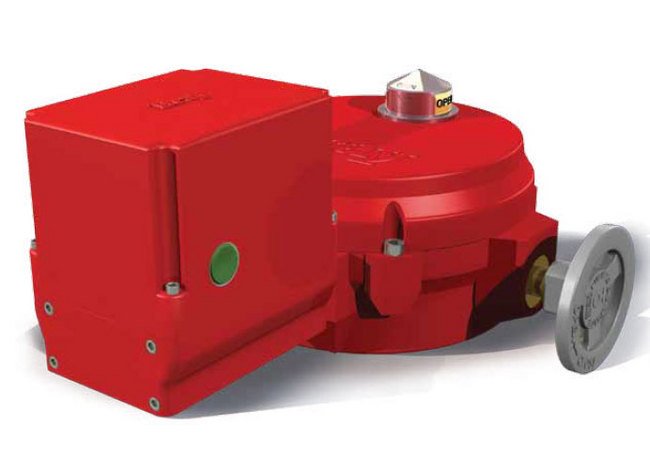

Bray Series 70 Actuator Battery Backup Kit
Bray Series 70 Actuator Battery Backup Kit
SKU:ACT-ece45e
Ensure uninterrupted valve/damper operation during power loss with the Bray Series 70 Actuator Battery Backup Kit. Advanced circuitry, visual indication, and Nema 4X enclosure for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bray Series 70 Actuator Battery Backup Kit
$299.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Actuator Battery Backup Kit
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Actuator Battery Backup Kit is designed to seamlessly provide return functionality for valve or damper positioning in case of power loss. This convenient solution features advanced circuitry, visual battery strength indication, and a durable Nema 4X enclosure. With field-selectable options and compatibility with On/Off and modulating actuators, it offers application flexibility and reduces field installation costs. Suitable for outdoor use within specified temperature limits, this Battery Backup Kit ensures reliable performance and operational efficiency.
Product Specifications
Specifications Battery Charging Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Battery Strength Alarm Contact Ratings
2 A
Specifications Charging Of Batteries
Continuous
Specifications Conduit Entries Wiring
3/4" NPT
Specifications Current Draw Actuator W Bbu
39 VA
Specifications Discharging Of Batteries
4.2A (Only upon loss of input power)
Specifications Features

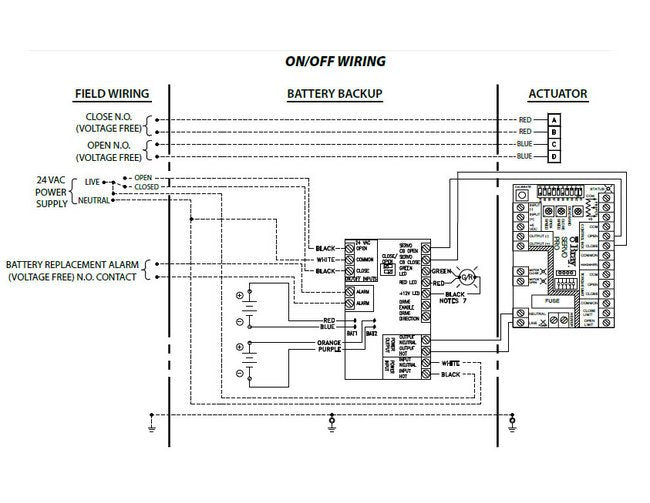

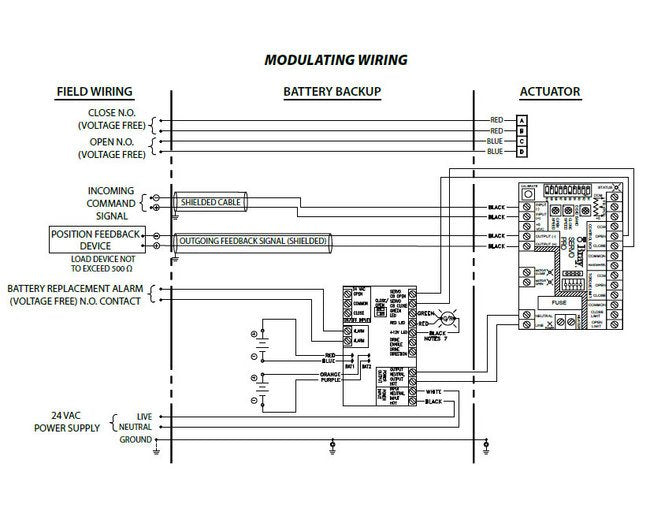

Auxiliary Switches | Modulating | On/Off
Specifications Housing
Die Cast aluminum, Polyester finish, Nema 4X (IP 65)
Specifications Life Of Batteries
4 years, depended on ambient Temperature
Specifications Operating Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Power Requirements
24 to 27 VAC
Specifications Storage Temperature Limits
-40 to 140 ºF | -40 to 60 ºC
Specifications Terminal Block Wiring
Max 14 AWG
Specifications Torque
600 lb·in
Specifications Type Of Batteries
SLA (Sealed Lead Acid) Power Sonic PS1212 or Equal
