Bray Series 70 Electric Actuator Battery Backup
Bray Series 70 Electric Actuator Battery Backup
SKU:ACT-49e228
Keep your Bray Series 70 Actuator running smoothly with this reliable Battery Backup. Return-to-position feature ensures continuous operation during power loss.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Bray Series 70 Electric Actuator Battery Backup
$199.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Electric Actuator Battery Backup
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

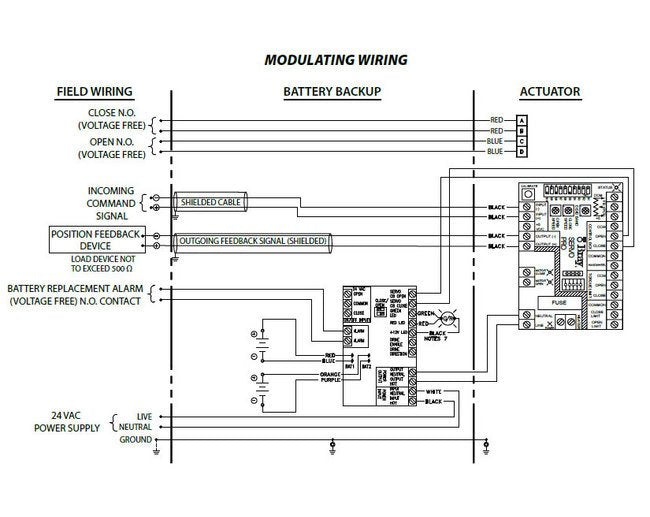

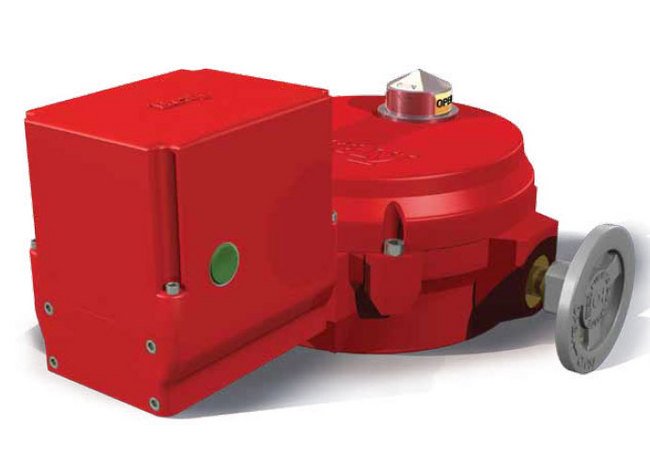

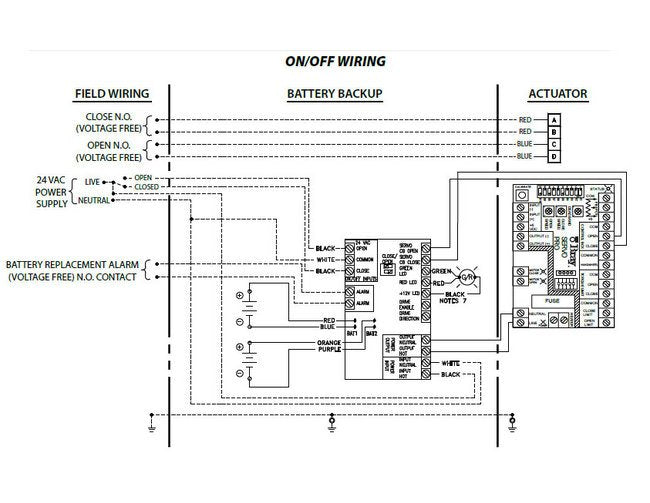

The Bray Series 70 Electric Actuator Battery Backup is a reliable solution designed for both On/Off and modulating actuators. It features a sturdy die-cast aluminum housing with NEMA 4X (IP 65) rating, providing visual and remote indication of battery strength. With a 4-year battery life and continuous charging capability, this Battery Backup ensures seamless operation in critical situations, offering return-to-position functionality upon power loss. Suitable for outdoor use within specified temperature limits, it enhances application flexibility and reduces field installation costs.
Product Specifications
Specifications Battery Charging Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Battery Strength Alarm Contact Ratings
2 A
Specifications Charging Of Batteries
Continuous
Specifications Conduit Entries Wiring
3/4" NPT
Specifications Current Draw Actuator W Bbu
51 VA
Specifications Discharging Of Batteries
4.2A (Only upon loss of input power)
Specifications Features
Auxiliary Switches | Modulating | On/Off
Specifications Housing
Die Cast aluminum, Polyester finish, Nema 4X (IP 65)
Specifications Life Of Batteries
4 years, depended on ambient Temperature
Specifications Operating Temperature Limits
-4 to 122 ºF | -20 to 50 ºC
Specifications Power Requirements
24 to 27 VAC
Specifications Storage Temperature Limits
-40 to 140 ºF | -40 to 60 ºC
Specifications Terminal Block Wiring
Max 14 AWG
Specifications Torque
2000 lb·in
Specifications Type Of Batteries
SLA (Sealed Lead Acid) Power Sonic PS1212 or Equal
