The Bray Series 70 Industrial Electric Actuator is a rugged and compact solution designed for quarter turn applications like butterfly valves, ball valves, and dampers. With torque outputs ranging from 600 to 18,000 lb.in, this actuator mounts directly to Bray and other standard valves without additional brackets. Featuring a manual declutchable override handwheel, NEMA 4X and IP65 ratings, and compatibility with various analog control signals, the Series 70 ensures ease of installation, operation, and maintenance in outdoor applications. It conforms to ISO 5211 standards and is UL, CSA, and CE approved for reliability and performance.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
24 VAC | Aux. Switches | Modulating
Specifications Full Load Current Draw
2.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.

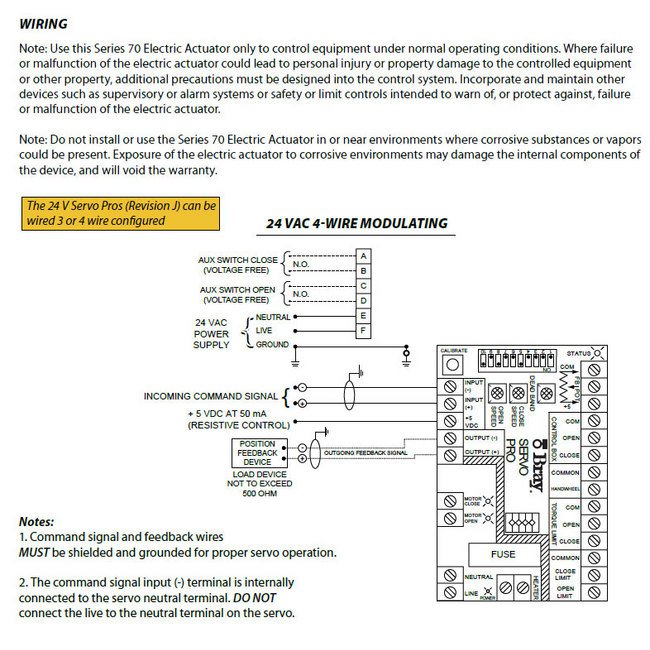

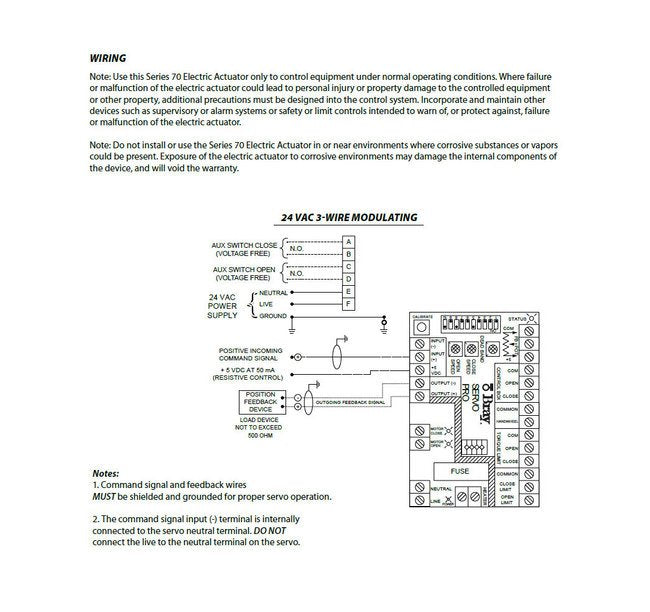

Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
60 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
2000 in·lbs
Specifications Voltage
24 VAC
