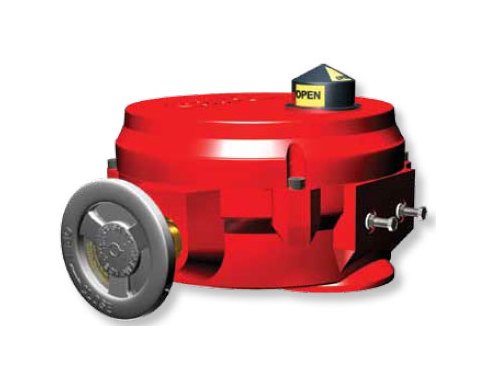

Bray Series 70 Industrial Electric Actuator - 120 VAC
Bray Series 70 Industrial Electric Actuator - 120 VAC
SKU:ACT-e83177
Rugged & compact Bray Series 70 Actuator - 120 VAC with high visibility indication & manual override, ideal for outdoor industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator - 120 VAC
$899.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator - 120 VAC
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a durable and compact solution designed for a wide range of quarter turn applications in industrial settings. With a torque output of 600 in·lbs and versatile features like high visibility position indication and manual declutchable override handwheel, this actuator ensures ease of installation and operation. Meeting NEMA 4X and IP 65 enclosure standards, it is suitable for outdoor applications like cooling tower valves. Equipped with advanced Servo Pro modulating option and UL, CSA, and CE approvals, the Series 70 Actuator guarantees universal application acceptability and compatibility with various control systems.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
120 VAC | Aux. Switches | On/Off
Specifications Full Load Current Draw
1.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Locked Rotor Current Draw
1.4 A
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
30 sec
Specifications Terminal Strip
12 to 22 AWG
Specifications Torque Output
600 in·lbs
Specifications Voltage
120 VAC
