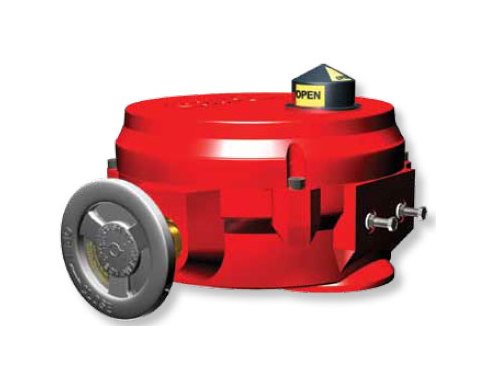

Bray Series 70 Industrial Electric Actuator - 120VAC, 2000 in·lbs
Bray Series 70 Industrial Electric Actuator - 120VAC, 2000 in·lbs
SKU:ACT-be6b45
Rugged, compact actuator for industrial applications, torque up to 2000 in·lbs, NEMA 4X, IP65 rated.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator - 120VAC, 2000 in·lbs
$799.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator - 120VAC, 2000 in·lbs
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a rugged and compact solution designed for a wide range of quarter-turn applications in industrial settings. With torque outputs ranging from 600 to 18,000 lb.in., this actuator mounts directly to butterfly valves without additional brackets or linkages. Featuring a manual declutchable override handwheel, NEMA 4X and IP65 ratings, and advanced Servo Pro modulating control options, the Series 70 ensures reliable performance in various environments. UL, CSA, and CE approvals guarantee compliance with industry standards, making it an ideal choice for cooling tower valves and other outdoor applications.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
120 VAC | Aux. Switches | Modulating
Specifications Full Load Current Draw
1.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Locked Rotor Current Draw
2.1 A
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
30 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
2000 in·lbs
Specifications Voltage
120 VAC
