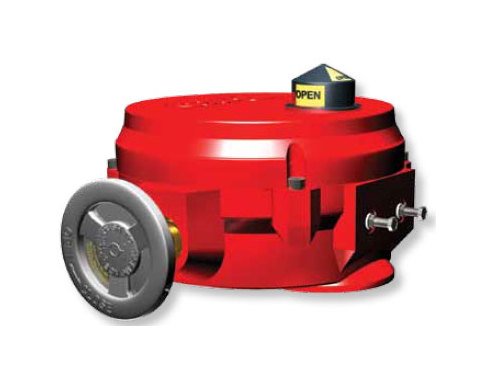

Bray Series 70 Industrial Electric Actuator - 120VAC Modulating
Bray Series 70 Industrial Electric Actuator - 120VAC Modulating
SKU:ACT-0a6338
Reliable Bray Series 70 Industrial Electric Actuator - Ideal for precise quarter turn applications. NEMA 4X, IP65 rated with Servo Pro modulating options.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator - 120VAC Modulating
$799.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator - 120VAC Modulating
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a robust solution designed for quarter turn applications like butterfly valves, ball valves, and dampers. With a torque output of 600 in·lbs, this actuator is perfect for industrial settings. Featuring manual declutchable override handwheel, high visibility position indication, and advanced Servo Pro modulating options, it ensures precise control and easy maintenance. Compliant with NEMA 4X, IP65, and ISO 5211 standards, this actuator guarantees durability, security, and seamless integration into existing systems. The UL, CSA, and CE approvals make it a reliable choice for various applications in building automation and temperature control systems.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
120 VAC | Aux. Switches | Heater | Modulating
Specifications Full Load Current Draw
1.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Locked Rotor Current Draw
1.4 A
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
30 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
600 in·lbs
Specifications Voltage
120 VAC
