Bray Series 70 Industrial Electric Actuator
Bray Series 70 Industrial Electric Actuator
SKU:ACT-62e3b4
Rugged, compact industrial electric actuator for various quarter turn applications. Features manual override, high visibility indicator, and internal isolation relays.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator
$1,299.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a rugged and compact solution designed for a wide range of quarter turn applications such as butterfly valves, ball valves, and dampers. With torque outputs ranging from 600 to 18,000 lb.in. (68 to 2033 Nm), this actuator easily mounts directly to Bray and other industry standard butterfly valves without the need for additional brackets or linkages. The NEMA 4X and IP65 rated enclosure with an industrial polyester finish ensures durability for outdoor applications. Equipped with advanced features like a manual declutchable override handwheel, high visibility beacon position indicator, and internal isolation relays, the Bray Series 70 meets stringent industry standards and is ideal for cooling tower valves.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
24 VAC | Aux. Switches | Heater | Modulating
Specifications Full Load Current Draw
3.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.

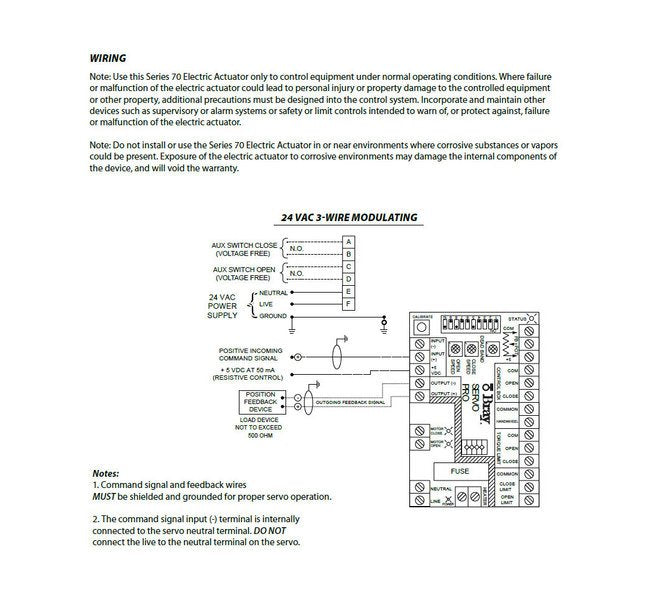

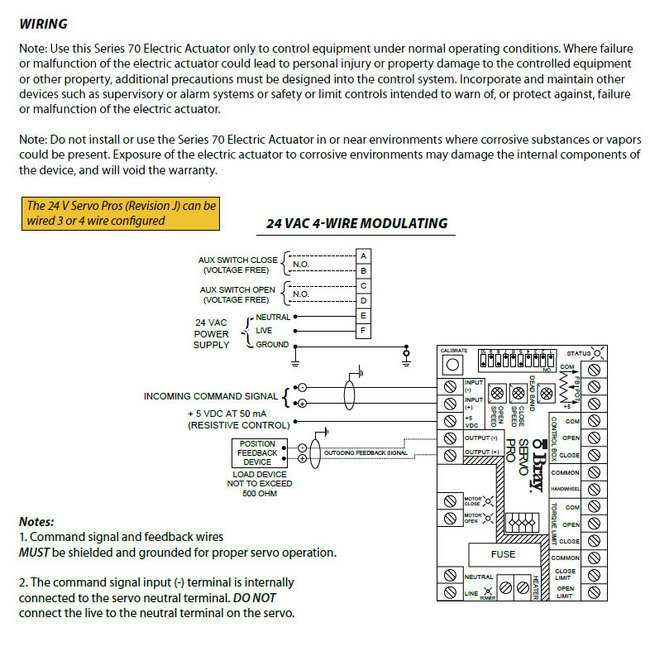

Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
60 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
5000 in·lbs
Specifications Voltage
24 VAC
