Bray Series 70 Industrial Electric Actuator
Bray Series 70 Industrial Electric Actuator
SKU:ACT-d10000
Bray Series 70 Electric Actuator - Rugged, compact, versatile solution for quarter turn applications in industrial settings.
Regular price
$1,250.00
Regular price
Sale price
$1,250.00
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator
$1,250.00
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator
$1,250.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a rugged and compact solution designed for quarter turn applications, such as butterfly valves, ball valves, and dampers. With torque outputs ranging from 600 to 18,000 lb.in. (68 to 2033 Nm), this actuator mounts directly to industry standard butterfly valves without the need for additional brackets. Equipped with a manual declutchable override handwheel, NEMA 4X and IP65 rated enclosure, and advanced Servo Pro modulating control card, it ensures seamless compatibility with analog control signals commonly used in building automation systems. The actuator meets ISO 5211 standards for direct mounting and features internal isolation relays for parallel wiring of multiple units, enhancing operational versatility and efficiency.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
24 VAC | Aux. Switches | Modulating
Specifications Full Load Current Draw
1.8 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.

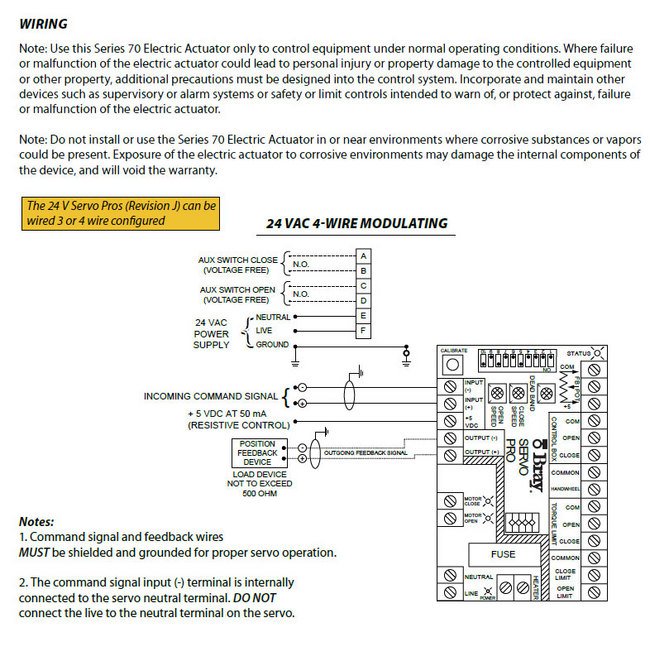

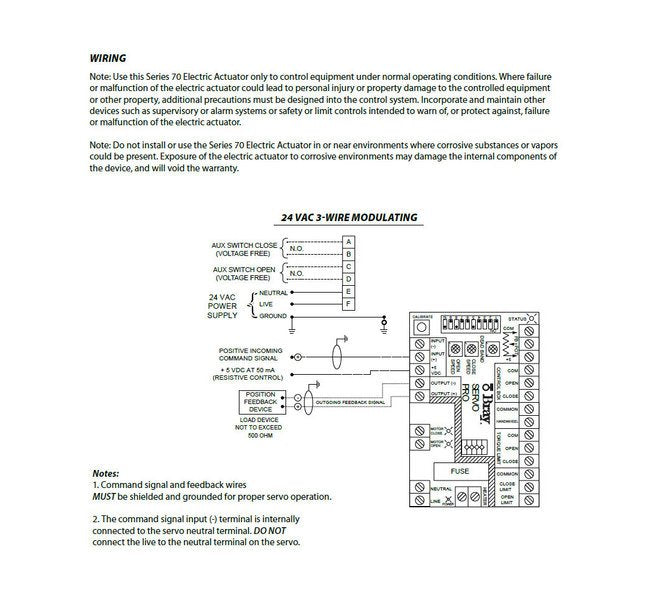

Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
45 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
600 in·lbs
Specifications Voltage
24 VAC
