The Bray Series 70 Industrial Electric Actuator is a rugged and compact solution designed for a wide range of quarter turn applications such as butterfly valves, ball valves, and dampers. With torque outputs ranging from 600 to 18,000 lb.in. (68 to 2033 Nm), it offers direct mounting to industry-standard butterfly valves without the need for additional brackets. This actuator features a manual declutchable override handwheel for easy installation, commissioning, and service. Suitable for outdoor applications with its NEMA 4x and IP65 enclosure, the Bray Series 70 is UL, CSA, and CE approved, ensuring reliability and compatibility with various control systems. The advanced Servo Pro modulating control card further enhances its universal application acceptability.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT

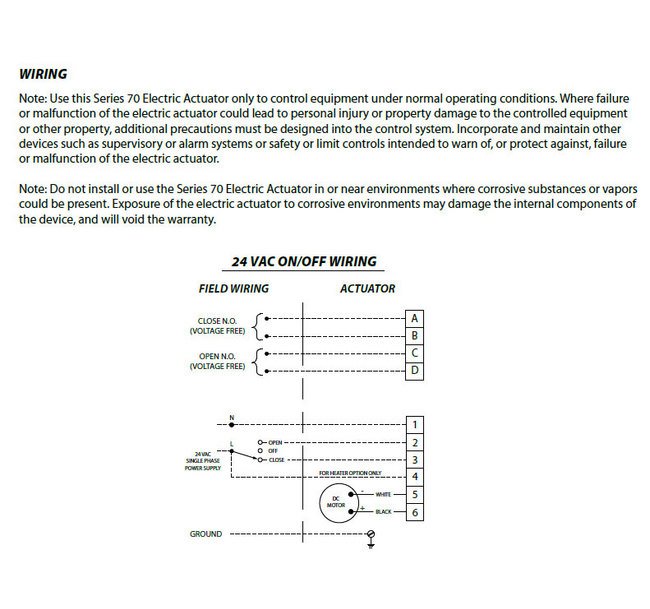

Specifications Features
24 VAC | Aux. Switches | Heater | On/Off
Specifications Full Load Current Draw
3.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.

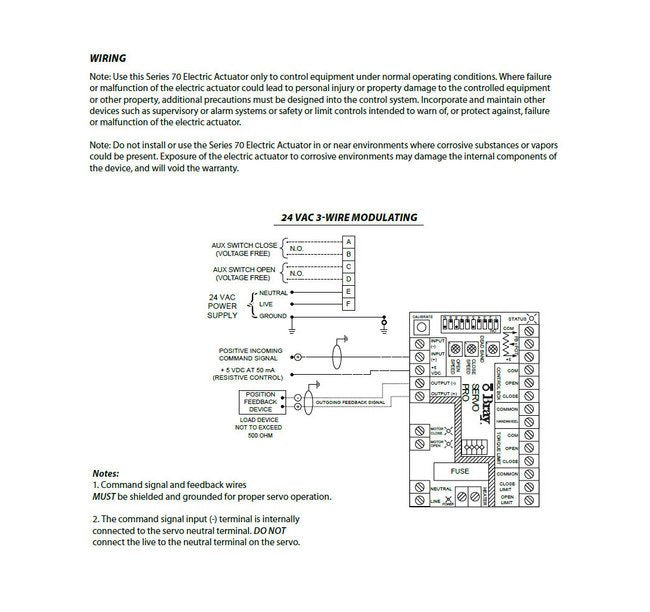

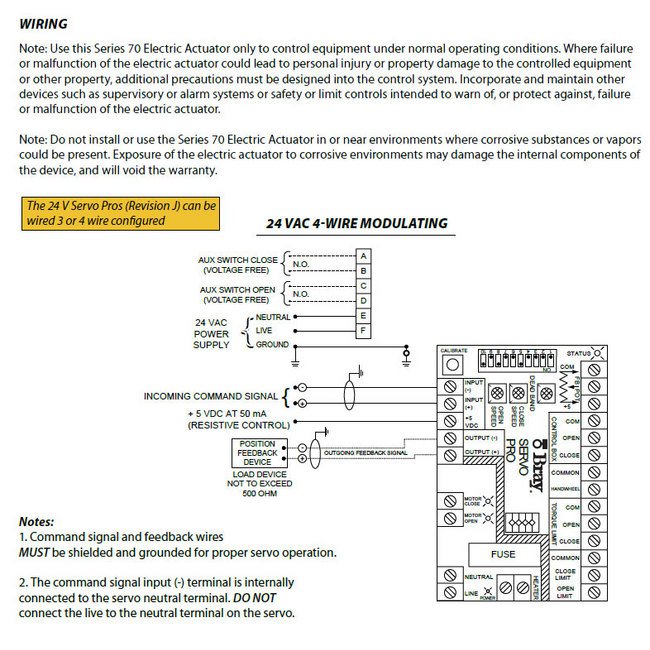

Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
60 sec
Specifications Terminal Strip
12 to 22 AWG
Specifications Torque Output
5000 in·lbs
Specifications Voltage
24 VAC
