Bray Series 70 Industrial Electric Actuator - 2000 in·lbs
Bray Series 70 Industrial Electric Actuator - 2000 in·lbs
SKU:ACT-2a65e7
Rugged Bray Series 70 Electric Actuator with 2000 in·lbs torque, manual override, NEMA 4X/IP65 enclosure & ISO 5211 compatibility.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator - 2000 in·lbs
$789.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator - 2000 in·lbs
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

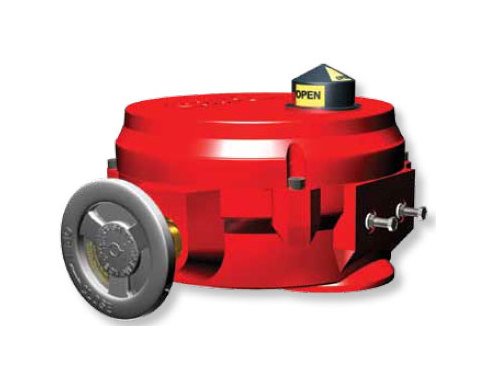

The Bray Series 70 Industrial Electric Actuator is a robust solution for quarter turn applications, fitting a wide range of valves and dampers. With a torque output of 2000 in·lbs, this actuator boasts a manual declutchable override handwheel, NEMA 4X/IP65 enclosure, and ISO 5211 direct mounting compatibility. Offering continuous duty motors and advanced Servo Pro modulating control, it ensures universal application acceptability and on-board diagnostics. UL, CSA, and CE approvals make it a reliable choice meeting industrial standards.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features

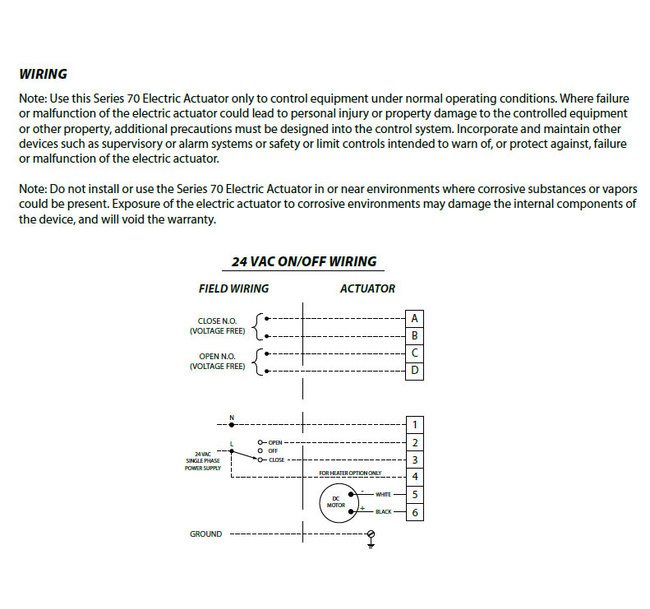

24 VAC | Aux. Switches | On/Off
Specifications Full Load Current Draw
2.0 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
60 sec
Specifications Terminal Strip
12 to 22 AWG
Specifications Torque Output
2000 in·lbs
Specifications Voltage
24 VAC
