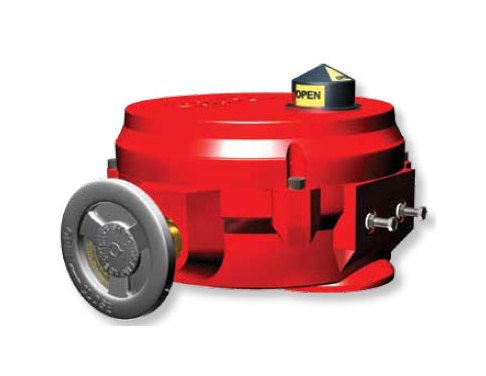

Bray Series 70 Industrial Electric Actuator
Bray Series 70 Industrial Electric Actuator
SKU:ACT-a5a9e3
The Bray Series 70 Industrial Electric Actuator - Reliable, durable, and versatile solution for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator
$799.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator is a robust solution designed for quarter turn applications in industrial settings. With torque outputs ranging from 600 to 18,000 lb.in., this actuator is suitable for butterfly valves, ball valves, and dampers. It features a manual declutchable override handwheel for easy installation and maintenance. The NEMA 4X and IP65 rated enclosure with an industrial polyester finish makes it ideal for outdoor use. Additionally, the advanced Servo Pro modulating control card ensures compatibility with various analog control signals, meeting the requirements of building automation and temperature control systems. With UL, CSA, and CE approvals, the Bray Series 70 Actuator offers reliability, durability, and ease of use for institutional and industrial buyers.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
120 VAC | Aux. Switches | On/Off
Specifications Full Load Current Draw
2.5 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Locked Rotor Current Draw
3.1 A
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
110 sec
Specifications Terminal Strip
12 to 22 AWG
Specifications Torque Output
18000 in·lbs
Specifications Voltage
120 VAC
