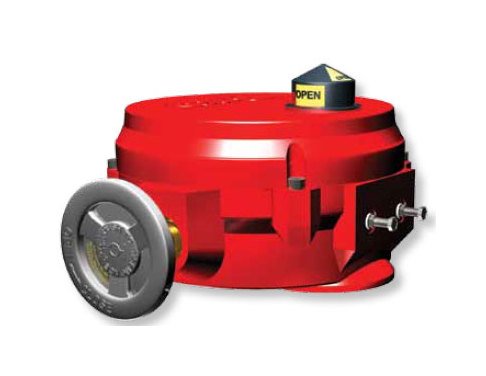

Bray Series 70 Industrial Electric Actuator 5000 in·lbs - Modulating 120VAC
Bray Series 70 Industrial Electric Actuator 5000 in·lbs - Modulating 120VAC
SKU:ACT-0beeca
Rugged, compact 5000 in·lbs Industrial Electric Actuator for precise control. Modulating 120VAC. UL, CSA, CE approved.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Bray Series 70 Industrial Electric Actuator 5000 in·lbs - Modulating 120VAC
$799.99
Quantity: 1
Claim Your Seller Account
Bray Series 70 Industrial Electric Actuator 5000 in·lbs - Modulating 120VAC
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bray Series 70 Industrial Electric Actuator 5000 in·lbs provides a rugged and compact solution for quarter-turn applications such as butterfly valves, ball valves, and dampers. With a torque output of 5000 in·lbs, this actuator features manual declutchable override handwheel, high visibility position indication, and NEMA 4X/IP65 rated enclosure. Equipped with advanced Servo Pro modulating control card, it assures compatibility with various analog control signals. UL, CSA, and CE approved, it meets industry standards for reliability and performance.
Product Specifications
Specifications Agency Listings 120v
UL, CE, CSA
Specifications Ambient Temperature
-20 to 150 ºF | -29 to 65 ºC
Specifications Aux Switches Two Spdt
10A (1/2 HP) at 220 VAC | 10A (1/3 HP) at 120 VAC
Specifications Conduit Entries 2
70-0061, 1/2" NPT | All Other Models, 3/4" NPT
Specifications Features
120 VAC | Aux. Switches | Modulating
Specifications Full Load Current Draw
1.6 A
Specifications Heater Optional
5 Watt, PTC style, self regulating
Specifications Housing
Die Cast Aluminum, Polyester Finish | NEMA 4X, IP 65
Specifications Locked Rotor Current Draw
3.0 A
Specifications Motor Duty Cycle
Continuous Duty
Specifications Note
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the nearest Bray office. Bray controls shall not be liable for damages resulting from misapplication or misuse of its products.
Specifications Servo Modulating Models
Control Input - 0 to 10 VDC, 2 to 10 VDC, 0 to 5 VDC, 4 to 20 mA | Input Impedance - Voltage: 1000K Ohms; Current: 250 Ohms
Specifications Stroke Time
30 sec
Specifications Terminal Strip
14 to 24 AWG
Specifications Torque Output
5000 in·lbs
Specifications Voltage
120 VAC
