Break-Away Swivel - 7/8" (22 mm)
Break-Away Swivel - 7/8" (22 mm)
SKU:PUL-39f876
Essential for cable pulling with a 400lb break load and ±10% breaking point for safe operations. Replaceable break pin for durability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Break-Away Swivel - 7/8" (22 mm)
$39.99
Quantity: 1
Claim Your Seller Account
Break-Away Swivel - 7/8" (22 mm)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

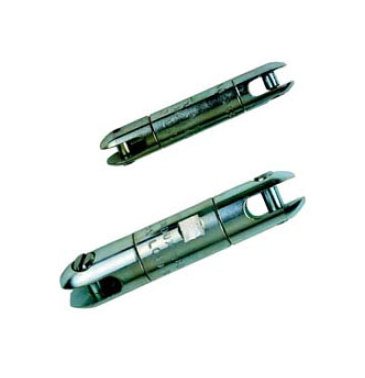

The Break-Away Swivel - 7/8" (22 mm) is a crucial tool for fiber optic and coaxial cable pulling tasks. With a robust break load of 400 pounds (1779 N), this swivel is designed to ensure safety by separating at ±10% of its rated break load. In the event of exceeding the load limit, the interior break pin fractures, leading to a safe separation while keeping the cable intact. The easily replaceable break pin enhances the durability and usability of this swivel, making it a reliable choice for cable pulling operations.

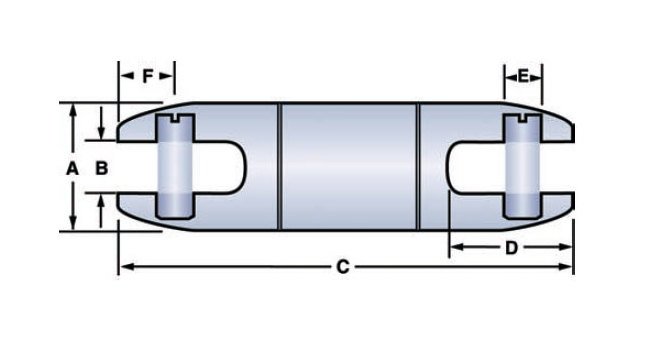

Product Specifications
Specifications Break Load Lb
400
Specifications Break Load N
1779
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
