BridgeMont BMC Series Heavy-Duty Truck Scale
BridgeMont BMC Series Heavy-Duty Truck Scale
SKU:TRU-78388c
BridgeMont BMC Series Heavy-Duty Truck Scale - Reliable, accurate, and durable for commercial and institutional use.
Regular price
$18,699.00
Regular price
Sale price
$18,699.00
Unit price
per
Initiate Order
BridgeMont BMC Series Heavy-Duty Truck Scale
$18,699.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMC Series Heavy-Duty Truck Scale
$18,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont BMC Series Heavy-Duty Truck Scale is a robust weighing solution designed for accurate and reliable performance in various industries. With a capacity of 180,000 lb | 90,000 kg, this legal-for-trade scale features a concrete deck, flat top design, and 75K alloy steel Easy-Post Weigh-Bars® with stainless steel components. The BMC Series comes with junction boxes, surge protection, and stainless steel sheathed cables for durability. Factory calibrated weigh bars and easy field assembly make installation seamless. Ideal for commercial and institutional use, this truck scale meets stringent industry standards for quality and precision.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
180,000 lb | 90,000 kg

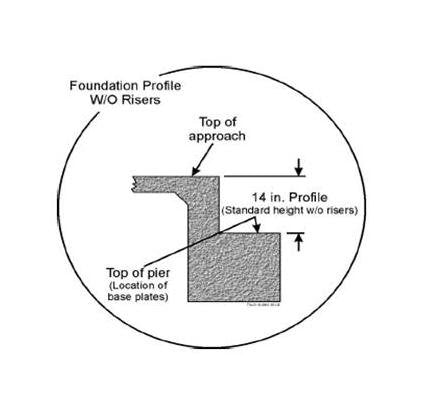

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 5010
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
50 ft 3-1/4 in | 15.3 m
Specifications Shipping Weight
12,883 lb | 5,844 kg
