BridgeMont BMC Series Truck Scale
BridgeMont BMC Series Truck Scale
SKU:TRU-9686f7
Precision and durability combined. BridgeMont BMC Series Truck Scale for industrial weighing needs.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
BridgeMont BMC Series Truck Scale
$28,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMC Series Truck Scale
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont BMC Series Truck Scale is a heavy-duty solution designed for precise weighing in industrial settings. This legal-for-trade scale features 75K alloy steel Easy-Post Weigh-Bars® with stainless steel components for durability and accuracy. With a concentrated load capacity of 90,000 lb (45,000 kg) and dual tandem axle capacity, this scale is perfect for commercial and institutional use. The BMC Series arrives at the installation site in pre-assembled sections for easy setup. Additionally, it comes with surge protection for Weigh Bars® and junction box, ensuring reliable performance in varied conditions.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
180,000 lb | 90,000 kg

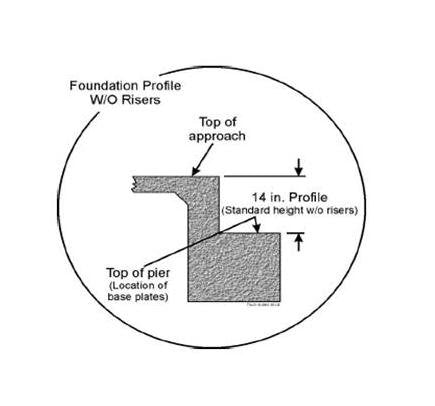

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 4712
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
46 ft 11-1/4in | 14.3 m
Specifications Shipping Weight
14,173 lb | 6,429 kg
