BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale
BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale
SKU:TRU-d2b855
Enhanced durability and accuracy define the BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale. With 90,000 lb capacity and a flat top steel deck, it's the ideal choice for motor truck applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale
$7,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier weighing accuracy and durability with the BridgeMont BMS-HD 1211 Heavy-Duty Truck Scale. This steel deck truck scale offers a robust capacity of 90,000 lb (45,000 kg) and a reliable 12 ft 0 in (3.7 m) scale length, ensuring precise measurements for motor truck applications. With a flat top design and a profile of 14 inches, this scale is ideal for heavy-duty usage. Additionally, it comes with a range of optional features like riser plates, guide posts, and stainless steel weigh bars to customize based on your specific needs.
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
90,000 lb | 45,000 kg
Specifications Illustrations Of Foundation Profile

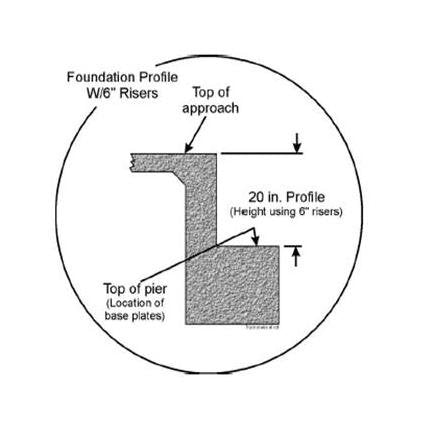

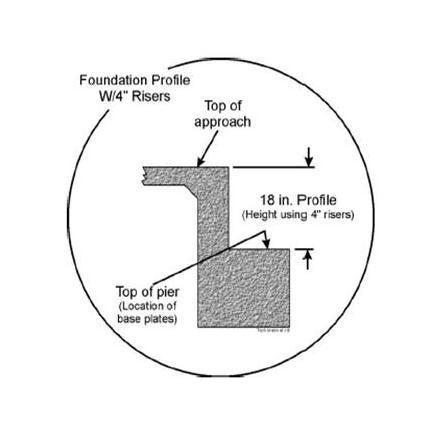

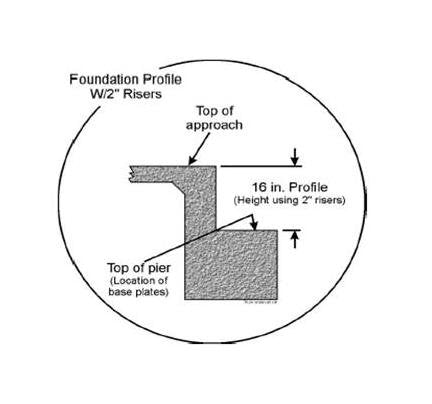

[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-HD 1211
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) - For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider)MSHA Guide rail - Bolted powder-painted yellow, 24" high double rail | Special colors - 3/8" top deck plate | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
12 ft 0 in | 3.7 m
Specifications Shipping Weight
5,616 lb | 2,547 kg
