BridgeMont BMS Low-Pro 8 Series Truck Scale
BridgeMont BMS Low-Pro 8 Series Truck Scale
SKU:TRU-00592b
BridgeMont BMS Low-Pro 8 Series Truck Scale - Heavy-duty legal-for-trade solution with 75K alloy steel Easi-Post Weigh Bars® for precise weighing needs.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
BridgeMont BMS Low-Pro 8 Series Truck Scale
$28,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMS Low-Pro 8 Series Truck Scale
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

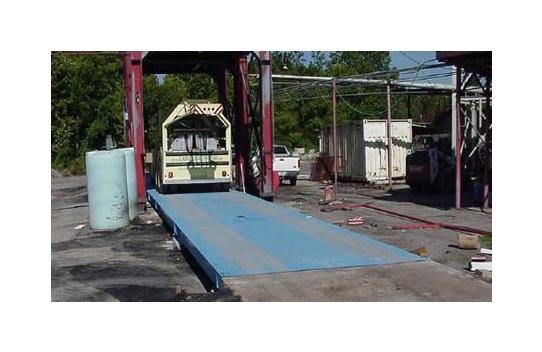

The BridgeMont BMS Low-Pro 8 Series Truck Scale is a heavy-duty solution designed for precise weighing needs. This legal-for-trade scale features durable 75K alloy steel Easi-Post Weigh Bars® for accurate measurements. With a concentrated load capacity of 90,000 lb (45,000 kg) and dual tandem axle capacity, it ensures reliable performance. The pre-assembled sections and factory-calibrated components simplify installation. Ideal for replacement projects, its extra low elevation profile and stainless steel sheathed cables make it a robust choice for diverse applications.
Product Specifications
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Elevation Profile
11.25 in
Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 7011
Specifications Number Of Modules
4
Specifications Options

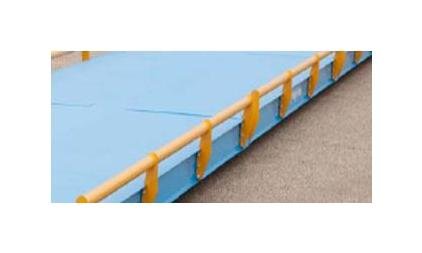

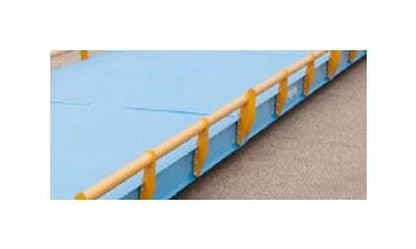

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
70 ft | 21.4 m
Specifications Shipping Weight
30,209 lb | 13,703 kg
