BridgeMont BMS-LP8 1710 Heavy-Duty Truck Scale
BridgeMont BMS-LP8 1710 Heavy-Duty Truck Scale
SKU:TRU-41a857
Precision meets durability in the BridgeMont BMS-LP8 1710 Truck Scale, ideal for heavy-duty weighing applications with Legal-for-Trade compliance.
Regular price
$17,999.00
Regular price
Sale price
$17,999.00
Unit price
per
Initiate Order
BridgeMont BMS-LP8 1710 Heavy-Duty Truck Scale
$17,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-LP8 1710 Heavy-Duty Truck Scale
$17,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

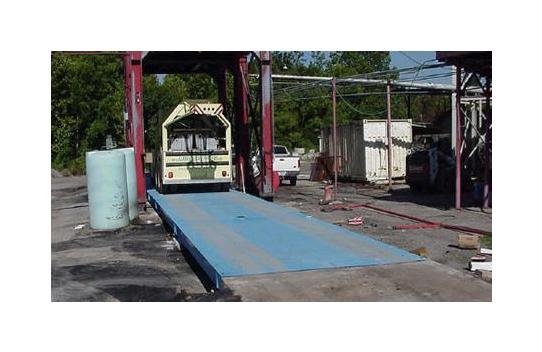

The BridgeMont BMS-LP8 1710 Truck Scale is a reliable and durable solution for weighing heavy loads with precision. Featuring a steel deck and top-notch components, this Legal-for-Trade scale is designed to meet the stringent requirements of commercial and institutional applications. The BMS-LP8 series comes pre-assembled for easy installation and offers a concentrated load capacity of 90,000 lb, making it ideal for a wide range of weighing needs. With factory-calibrated weigh bars and stainless steel sheathed cables, this truck scale ensures accuracy and longevity, making it a cost-effective choice for replacement projects.
Product Specifications
Specifications Capacity
90,000 lb | 45,000 kg
Specifications Elevation Profile
11.25 in

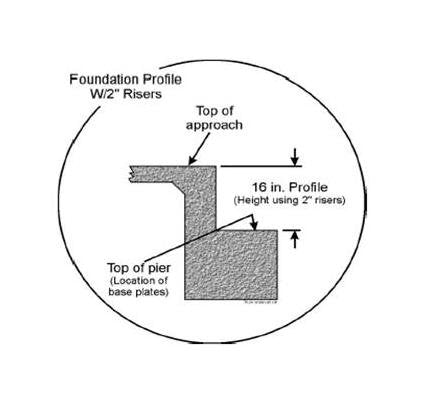

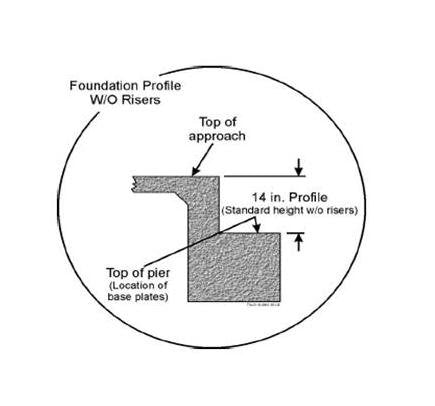

Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 1710
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
17 ft 6 in | 5.3 m
Specifications Shipping Weight
7,920 lb | 3,592 kg
