BridgeMont BMS-LP8 3510 Heavy-Duty Truck Scale
BridgeMont BMS-LP8 3510 Heavy-Duty Truck Scale
SKU:TRU-d0c5df
BridgeMont BMS-LP8 3510 Truck Scale - Legal-for-Trade, pre-calibrated for accuracy, ideal for low profile installations.
Regular price
$21,999.00
Regular price
Sale price
$21,999.00
Unit price
per
Initiate Order
BridgeMont BMS-LP8 3510 Heavy-Duty Truck Scale
$21,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-LP8 3510 Heavy-Duty Truck Scale
$21,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

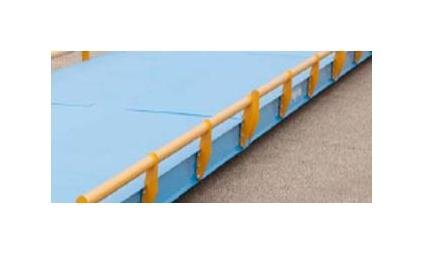

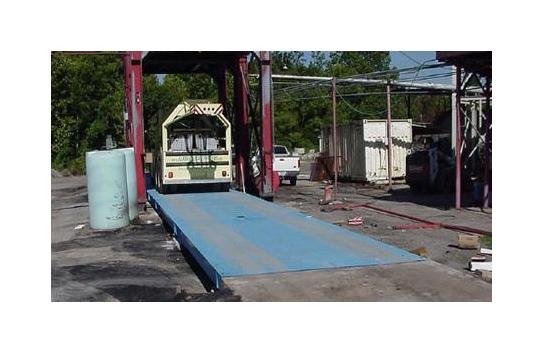

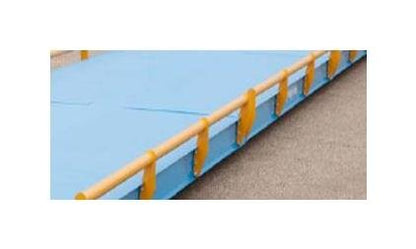

The BridgeMont BMS-LP8 3510 Truck Scale is a robust solution for both commercial and institutional needs. This legal-for-trade scale boasts a durable steel deck with 75K alloy steel Easi-Post Weigh Bars® for accurate measurements. It arrives pre-assembled for easy installation, with factory-calibrated components ensuring precision. With a concentrated load capacity of 90,000 lb (45,000 kg), it's ideal for replacement projects requiring a low elevation profile. Additional options like stainless steel sheathed cables and riser plates offer customization for various setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Elevation Profile
11.25 in
Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 3510
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
35 ft | 10.7 m
Specifications Shipping Weight
14,825 lb | 6,725 kg
