BridgeMont BMS-LP8 6011 Heavy-Duty Truck Scale
BridgeMont BMS-LP8 6011 Heavy-Duty Truck Scale
SKU:TRU-4d7d3e
BridgeMont BMS-LP8 6011 Truck Scale - Steel deck, Legal-for-Trade, 75K alloy steel Easi-Post Weigh Bars®, and pre-calibrated components for accurate weighing.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
BridgeMont BMS-LP8 6011 Heavy-Duty Truck Scale
$19,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-LP8 6011 Heavy-Duty Truck Scale
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

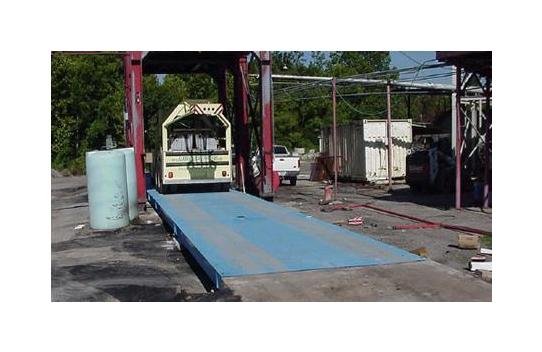

The BridgeMont BMS-LP8 6011 Heavy-Duty Truck Scale is a top-of-the-line solution for truck weighing needs. This steel deck scale features a Legal-for-Trade certification, Class IIIL rating, and 10,000 divisions for accurate weight readings. The BMS-LP8 6011 series comes equipped with 75K alloy steel Easi-Post Weigh Bars® with stainless steel components, junction boxes, surge protection, and AC line protection for reliable performance. With a CLC and DTA of 90,000 lb, this scale is ideal for replacement projects requiring an extra low elevation profile. Pre-assembled sections and factory-calibrated components ensure easy installation and precise weighing results.
Product Specifications
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Elevation Profile
11.25 in
Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 6011
Specifications Number Of Modules
4
Specifications Options

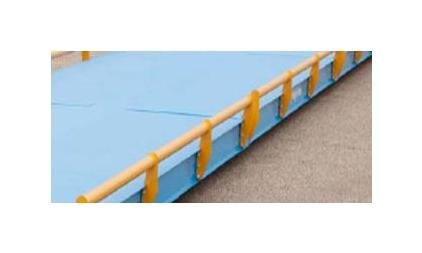

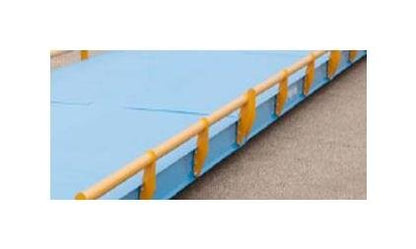

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
60 ft | 18.3 m
Specifications Shipping Weight
26,465 lb | 12,004 kg
