BridgeMont BMS-LP8 Series Truck Scale
BridgeMont BMS-LP8 Series Truck Scale
SKU:TRU-9c3fd0
BridgeMont BMS-LP8 Series Truck Scale: Heavy-duty, legal-for-trade steel deck scale with 75K alloy steel Easi-Post Weigh Bars® for accurate weighing in trucking operations.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
BridgeMont BMS-LP8 Series Truck Scale
$14,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-LP8 Series Truck Scale
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont BMS-LP8 Series Truck Scale is a heavy-duty, legal-for-trade solution designed for accurate weighing in trucking and logistics operations. This steel deck scale features 75K alloy steel Easi-Post Weigh Bars® with stainless steel components for durability. The pre-assembled sections and factory-calibrated weigh bars simplify installation. With a concentrated load capacity of 90,000 lb, this scale is ideal for replacement projects requiring an extra low elevation profile. The optional accessories like riser plates, guide posts, and stainless steel sheathed interface cables further enhance its functionality and versatility.
Product Specifications
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Elevation Profile
11.25 in
Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 8011
Specifications Number Of Modules
5
Specifications Options

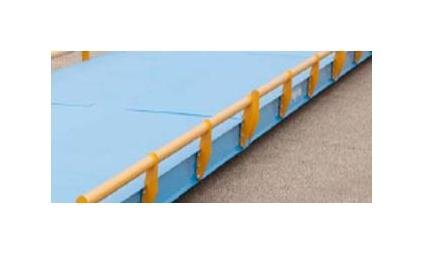

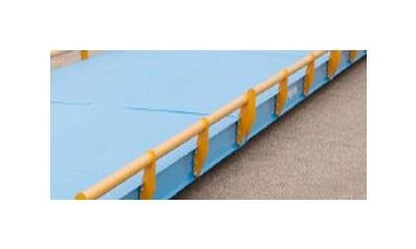

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
80 ft | 24.4 m
Specifications Shipping Weight
34,303 lb | 15,574 kg
