BridgeMont BMS-SD Series Truck Scale
BridgeMont BMS-SD Series Truck Scale
SKU:TRU-d7eaa7
Discover precision and reliability with the BridgeMont BMS-SD Series Truck Scale, ideal for legal-for-trade applications and accurate weight measurements.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
BridgeMont BMS-SD Series Truck Scale
$28,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-SD Series Truck Scale
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

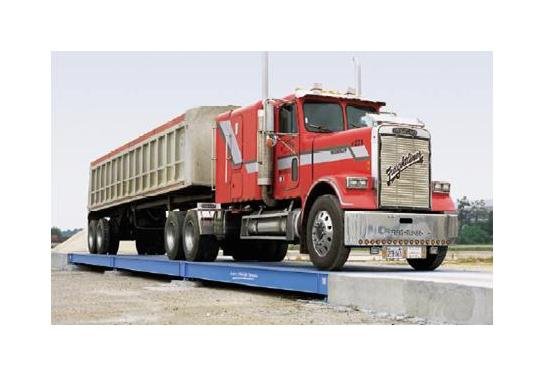

The BridgeMont BMS-SD Series Truck Scale is a premium solution designed for above-ground applications with moderate traffic and legal highway axel loads. This legal-for-trade truck scale features a durable steel deck with flat top design, incorporating 75K alloy steel Easi-Post Weigh Bars® for accurate measurements. The pre-assembled sections come equipped with stainless steel components, surge protection, and AC line protection for sustained performance. With a concentrated load capacity of 70,000 lb (35,000 kg) and dual tandem axel capacity, the BridgeMont BMS-SD Series ensures reliable weight measurements for various commercial and institutional needs. Final assembly and calibration in the field guarantee precision and efficiency for all weighing operations.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-SD 4710
Specifications Number Of Modules
2
Specifications Options

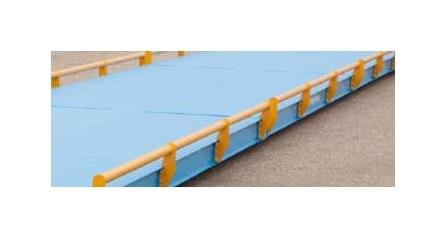

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024)(Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 13761-0028 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
46 ft 11-1/4in | 14.3 m
Specifications Shipping Weight
15,473 lb | 7,019 kg
