BridgeMont BMS-SD Series Truck Scale
BridgeMont BMS-SD Series Truck Scale
SKU:TRU-333489
Durable legal-for-trade truck scale with precise weighing capabilities, ideal for moderate traffic and legal highway loads.
Regular price
$27,999.99
Regular price
Sale price
$27,999.99
Unit price
per
Initiate Order
BridgeMont BMS-SD Series Truck Scale
$27,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-SD Series Truck Scale
$27,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

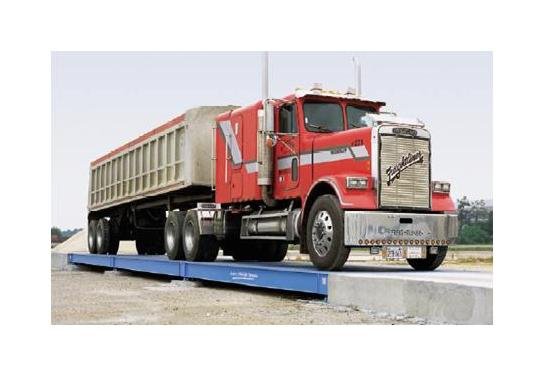

The BridgeMont BMS-SD Series Truck Scale is a reliable and durable solution designed for above ground applications with moderate traffic and legal highway axle loads. Featuring a steel deck and flat top design, this legal-for-trade truck scale ensures accurate and precise weighing operations. The BMS-SD Series comes equipped with 75K alloy steel Easi-Post Weigh Bars® with stainless steel components, interface cable, junction boxes, surge protection, and AC line protection for indicators. With a concentrated load capacity (CLC) of 70,000 lb and dual tandem axle capacity (DTA) of 70,000 lb, this truck scale guarantees efficiency and longevity in various industrial settings. The modular construction and factory calibration of key components simplify installation and ensure optimal performance.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-SD 3010
Specifications Number Of Modules
2
Specifications Options

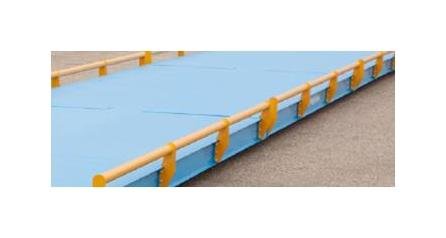

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024)(Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 13761-0028 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
29 ft 7-1/4 in | 9.0 m
Specifications Shipping Weight
10,811 lb | 4,904 kg
