BridgeMont BMS-SD Series Truck Scale
BridgeMont BMS-SD Series Truck Scale
SKU:TRU-70a0db
BridgeMont BMS-SD Series Truck Scale: Durable, Legal-for-Trade solution for accurate weighing in moderate traffic conditions.
Regular price
$36,999.00
Regular price
Sale price
$36,999.00
Unit price
per
Initiate Order
BridgeMont BMS-SD Series Truck Scale
$36,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-SD Series Truck Scale
$36,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

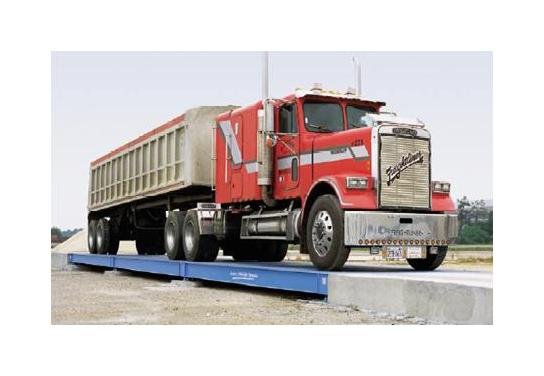

Ideal for above-ground applications with moderate traffic, the BridgeMont BMS-SD Series Truck Scale is a reliable solution for legal highway axle loads. Featuring a steel deck and flat top design, this scale is Legal-for-Trade certified according to CC 97-074, Class IIIL 10,000 Divisions standards. The series comes equipped with 75K alloy steel Easi-Post Weigh Bars® and stainless steel components, 50' interface cable, junction boxes, surge protection, and AC line protection for reliable performance. It arrives pre-assembled for easy installation and features a concentrated load capacity of 70,000 lb (35,000 kg) with a dual tandem axle capacity. Customize with various options for enhanced functionality and accuracy.
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-SD 4711
Specifications Number Of Modules
2
Specifications Options

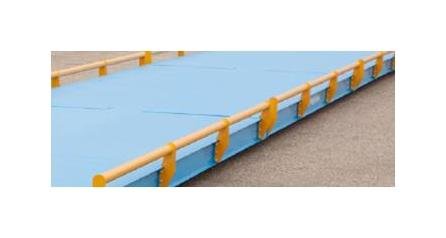

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024)(Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 13761-0028 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
46 ft 11-1/4in | 14.3 m
Specifications Shipping Weight
16,524 lb | 7,495 kg
