BridgeMont BMS-SD Truck Scale
BridgeMont BMS-SD Truck Scale
SKU:TRU-b9cfae
BridgeMont BMS-SD Truck Scale - Reliable, accurate, and efficient solution for legal-for-trade weighing needs.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
BridgeMont BMS-SD Truck Scale
$18,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont BMS-SD Truck Scale
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

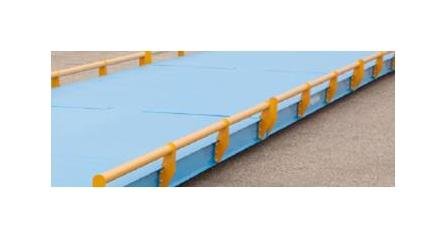

The BridgeMont BMS-SD Truck Scale is a reliable and durable solution designed for above-ground applications with moderate traffic and legal highway axle loads. Featuring a steel deck construction, 75K alloy steel Easi-Post Weigh Bars®, and stainless steel components, this legal-for-trade scale ensures accurate weight measurements. The pre-assembled sections and factory-calibrated components make installation efficient, with final calibration required on-site. With a concentrated load capacity of 70,000 lb and dual tandem axle capacity, the BMS-SD series combines robust performance with ease of use, making it an ideal choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-SD 6011
Specifications Number Of Modules
3
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024)(Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 13761-0028 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
59 ft 10-1/2 in | 18.3 m
Specifications Shipping Weight
21,405 lb | 9,709 kg
