BridgeMont HD Series Truck Scale
BridgeMont HD Series Truck Scale
SKU:TRU-12f000
Heavy-duty truck scale for precise weighing up to 180,000 lb (90,000 kg). Durable steel deck, flat top design, and modular construction for enhanced flexibility.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
BridgeMont HD Series Truck Scale
$18,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont HD Series Truck Scale
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

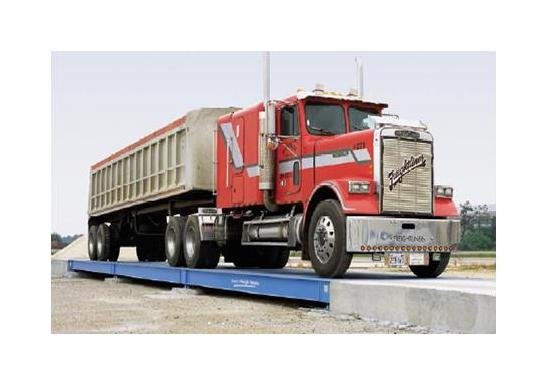

The BridgeMont Heavy-Duty (BMS-HD Series) Truck Scale is a robust solution designed for precision weighing of heavy loads up to 180,000 lb (90,000 kg). Featuring a durable steel deck with a flat top design, this motor truck scale ensures accurate measurements. With a scale length of 34 ft 11-1/4 in and an actual platform width of 9 ft 10-1/2 in, it offers a stable base for weighing operations. The modular design with options like a 1" Riser Plate and stainless steel sheathed interface cable enhances flexibility and performance, making it ideal for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-HD 3510
Specifications Number Of Modules
2
Specifications Options

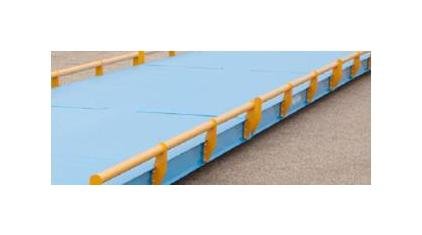

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) - For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider)MSHA Guide rail - Bolted powder-painted yellow, 24" high double rail | Special colors - 3/8" top deck plate | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
34 ft 11-1/4 in | 10.6 m
Specifications Shipping Weight
12,865 lb | 5,836 kg
