BridgeMont Heavy-Duty BMC Series Truck Scale
BridgeMont Heavy-Duty BMC Series Truck Scale
SKU:TRU-ec768f
Durable legal-for-trade truck scale with 75K alloy steel Easy-Post Weigh-Bars® and stainless steel components for accurate weight measurements in industrial settings.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
BridgeMont Heavy-Duty BMC Series Truck Scale
$27,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty BMC Series Truck Scale
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy-Duty BMC Series Truck Scale is a durable and reliable weighing solution designed for industrial applications. Featuring a concrete deck and flat top design, this legal-for-trade scale comes equipped with 75K alloy steel Easy-Post Weigh-Bars® and stainless steel components for superior performance. It includes essential components such as a 50' interface cable, junction boxes, platform ground wires, and surge protection. The BMC Series offers a concentrated load capacity (CLC) and dual tandem axle capacity (DTA) of 90,000 lb, meeting stringent industry standards for accuracy and durability. Ideal for commercial and government use, this truck scale ensures precise weight measurements and hassle-free installation.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
270,000 lb | 135,000 kg

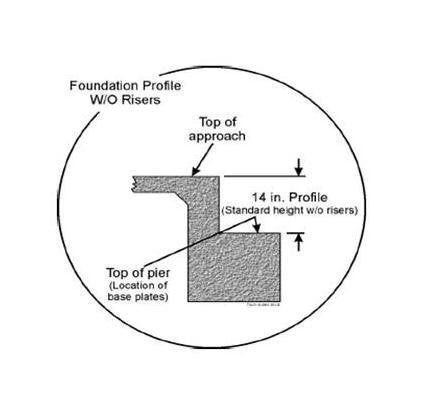

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 12410
Specifications Number Of Modules
5
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
124 ft 1 in | 37.8 m
Specifications Shipping Weight
30,544 lb | 13,855 kg
