BridgeMont Heavy-Duty BMC Series Truck Scale
BridgeMont Heavy-Duty BMC Series Truck Scale
SKU:TRU-863196
BridgeMont Heavy-Duty BMC Series Truck Scale - Legal-for-Trade, Concrete Deck, 75K alloy steel Easy-Post Weigh-Bars® for accurate and reliable weighing in heavy-duty industrial applications.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
BridgeMont Heavy-Duty BMC Series Truck Scale
$14,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty BMC Series Truck Scale
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy-Duty BMC Series Truck Scale is a reliable and accurate weighing solution designed for heavy-duty industrial applications. With a concrete deck and flat top design, this legal-for-trade truck scale is equipped with 75K alloy steel Easy-Post Weigh-Bars® and stainless steel Easi-Post components for durability and precision. The BMC Series comes with a full set of features including a 50' interface cable, junction boxes, surge protection, and AC line protection, ensuring seamless installation and operation. This truck scale offers a concentrated load capacity (CLC) and dual tandem axle capacity (DTA) of 90,000 lb, meeting the stringent requirements of industrial and government procurement standards.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
180,000 lb | 90,000 kg

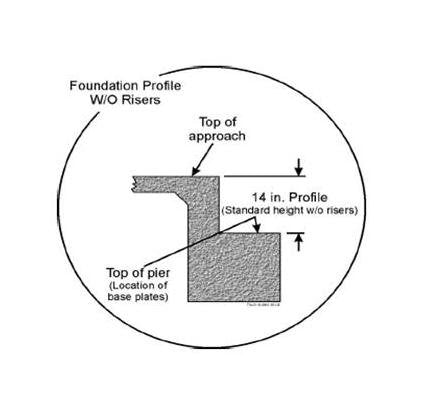

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 3012
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
29 ft 7-1/4 in | 9.0 m
Specifications Shipping Weight
10,608 lb | 4,812 kg
