BridgeMont Heavy Duty BMC Series Truck Scale
BridgeMont Heavy Duty BMC Series Truck Scale
SKU:TRU-9bf6f6
Heavy-duty truck scale with 270,000 lb capacity, stainless steel Easy-Post Weigh-Bars®, and surge protection. Ideal for precise industrial weighing applications.
Regular price
$24,999.99
Regular price
Sale price
$24,999.99
Unit price
per
Initiate Order
BridgeMont Heavy Duty BMC Series Truck Scale
$24,999.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy Duty BMC Series Truck Scale
$24,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy Duty BMC Series Truck Scale is a rugged and reliable solution for weighing heavy vehicles. With a capacity of 270,000 lb (135,000 kg) and a profile of 14 inches, this legal-for-trade truck scale features 75K alloy steel Easy-Post Weigh-Bars® for accurate measurements. The BMC Series comes with stainless steel components, surge protection, junction boxes, and platform ground wires, ensuring durability and longevity. Its modular design allows for easy assembly in the field, with factory-calibrated weigh bars and cables. Ideal for industrial applications requiring precise weight measurement and compliance with stringent standards.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
270,000 lb | 135,000 kg

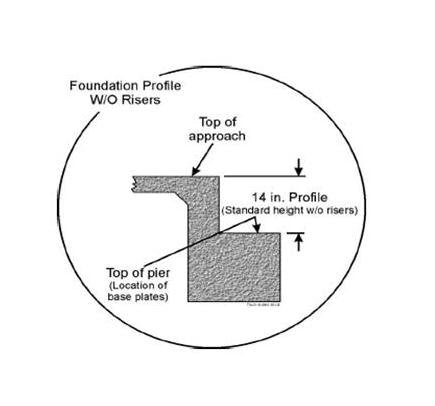

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 10012
Specifications Number Of Modules
5
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
99 ft 1 in | 30.5 m
Specifications Shipping Weight
30,222 lb | 13,708 kg
