BridgeMont Heavy Duty BMC Series Truck Scale
BridgeMont Heavy Duty BMC Series Truck Scale
SKU:TRU-429f54
High-performance BMC Series Truck Scale for industrial weighing needs. Concrete deck, Legal-for-Trade, with 90,000 lb capacity. Easy assembly & calibration.
Regular price
$23,999.00
Regular price
Sale price
$23,999.00
Unit price
per
Initiate Order
BridgeMont Heavy Duty BMC Series Truck Scale
$23,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy Duty BMC Series Truck Scale
$23,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy Duty BMC Series Truck Scale is a top-of-the-line solution for industrial weighing needs. Featuring a sturdy concrete deck and flat top design, this Legal-for-Trade scale is equipped with high-quality components, including 75K alloy steel Easy-Post Weigh-Bars®. The BMC Series comes with essential accessories like interface cables, junction boxes, surge protection, and AC line protection. With a concentrated load capacity of 90,000 lb and dual tandem axle capacity, this truck scale ensures accurate and reliable weighing for various applications. Assembly is straightforward with factory-calibrated weigh bars and cables, requiring final on-site calibration after installation.
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
180,000 lb | 90,000 kg

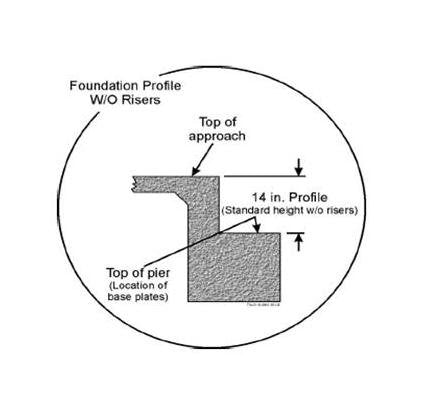

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 5011
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
50 ft 3-1/4 in | 15.3 m
Specifications Shipping Weight
13,693 lb | 6,211 kg
