BridgeMont Heavy-Duty BMS-LP8 7010 Truck Scale
BridgeMont Heavy-Duty BMS-LP8 7010 Truck Scale
SKU:TRU-301f1c
Heavy-duty truck scale for industrial weighing with steel deck, 75K alloy steel Easi-Post Weigh Bars®, and up to 270,000 lb capacity. Ideal for institutional and government procurement.
Regular price
$14,699.99
Regular price
Sale price
$14,699.99
Unit price
per
Initiate Order
BridgeMont Heavy-Duty BMS-LP8 7010 Truck Scale
$14,699.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty BMS-LP8 7010 Truck Scale
$14,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy-Duty BMS-LP8 7010 Truck Scale is a robust solution designed for precise weighing in industrial settings. Built with a steel deck and featuring 75K alloy steel Easi-Post Weigh Bars®, this legal-for-trade truck scale ensures accurate measurements with a capacity of up to 270,000 lb. The pre-assembled sections and factory-calibrated components streamline installation, while the low elevation profile makes it ideal for replacement projects. With options for additional stainless steel sheathed interface cables, anchor bolts, guide posts, and customizable lengths and widths, this truck scale offers versatility and durability for institutional and government procurement needs.
Product Specifications
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Elevation Profile
11.25 in

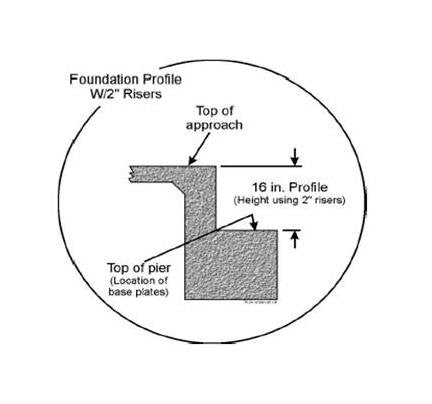

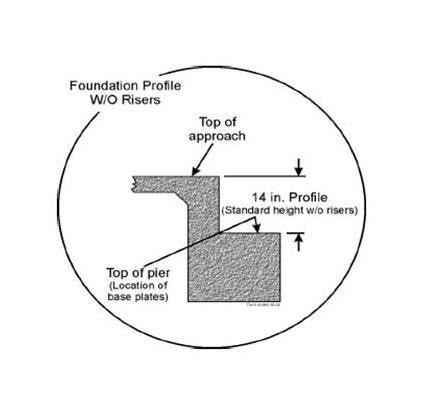

Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 7010
Specifications Number Of Modules
4
Specifications Options

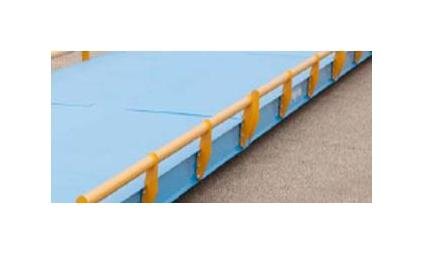

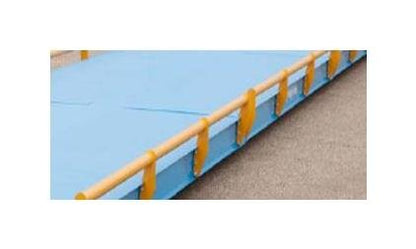

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
70 ft | 21.4 m
Specifications Shipping Weight
28,648 lb | 12,995 kg
