BridgeMont Heavy-Duty BMS-LP8 Truck Scale
BridgeMont Heavy-Duty BMS-LP8 Truck Scale
SKU:TRU-0701a0
BridgeMont Heavy-Duty BMS-LP8 Truck Scale: Steel deck, legal-for-trade, 90,000 lb capacity, easy installation, precise readings, ideal for replacement projects
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
BridgeMont Heavy-Duty BMS-LP8 Truck Scale
$12,499.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty BMS-LP8 Truck Scale
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

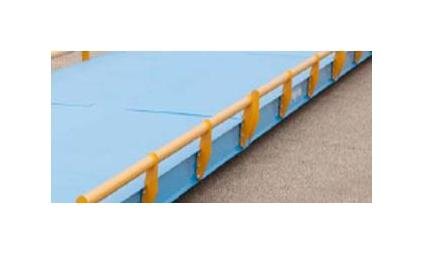

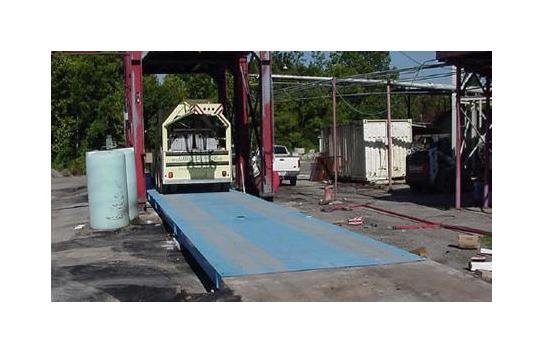

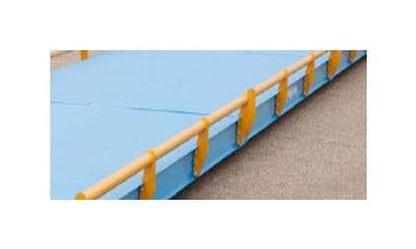

The BridgeMont Heavy-Duty BMS-LP8 Truck Scale sets the industry standard for precision and durability. Featuring a steel deck with flat top design, this legal-for-trade truck scale comes equipped with 75K alloy steel Easi-Post Weigh Bars® for accurate readings. The pre-assembled sections and factory-calibrated components ensure easy installation and reliable performance. With a concentrated load capacity of 90,000 lb and dual tandem axle capacity, this scale is ideal for replacement projects requiring low elevation profiles. Upgrade options include stainless steel sheathed interface cables and riser plates for added flexibility.
Product Specifications
Specifications Capacity
90,000 lb | 45,000 kg
Specifications Elevation Profile
11.25 in
Specifications Illustrations Of Foundation Profile
[56085-0018] - Easi-Post base palte, standard 11.25" profile | [56145-0018] - Easi-Post base plate w/2" riser (total of 13.25" profile)
Specifications Model Number
BMS-LP8 1511
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scale 12' wide or wider) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T-iron filler strips (10', or 11' lengths) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026)
Specifications Scale Length
15 ft | 4.6 m
Specifications Shipping Weight
7,410 lb | 3,361 kg
