BridgeMont Heavy Duty Truck Scale
BridgeMont Heavy Duty Truck Scale
SKU:TRU-242251
Precision truck scale with 75K alloy steel Weigh-Bars® and surge protection, ideal for legal-for-trade applications.
Regular price
$27,599.99
Regular price
Sale price
$27,599.99
Unit price
per
Initiate Order
BridgeMont Heavy Duty Truck Scale
$27,599.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy Duty Truck Scale
$27,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BridgeMont Heavy Duty Truck Scale, BMC Series, is a robust solution designed for precise, legal-for-trade weight measurements. With components like the 75K alloy steel Easy-Post Weigh-Bars® and stainless steel Easi-Post elements, this scale ensures accuracy and durability. It comes equipped with a 50' interface cable, junction boxes, surge protection, and AC line protection, meeting the requirements for institutional and government procurement. Factory-calibrated sections simplify installation, and the scale offers a concentrated load capacity of 90,000 lb. Upgrade options like stainless steel sheathed cables and additional accessories enhance performance for various applications.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
270,000 lb | 135,000 kg

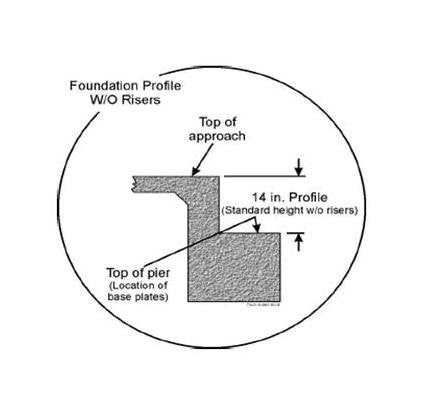

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 6012
Specifications Number Of Modules
3
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
59 ft 10-1/2 in | 18.3 m
Specifications Shipping Weight
18,622 lb | 8,447 kg
