BridgeMont Heavy Duty Truck Scale BMC Series
BridgeMont Heavy Duty Truck Scale BMC Series
SKU:TRU-78f18a
Highly accurate and durable BridgeMont Heavy Duty Truck Scale BMC Series for commercial vehicle weighing. Legal-for-Trade with premium features for precise measurements.
Regular price
$13,499.99
Regular price
Sale price
$13,499.99
Unit price
per
Initiate Order
BridgeMont Heavy Duty Truck Scale BMC Series
$13,499.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy Duty Truck Scale BMC Series
$13,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

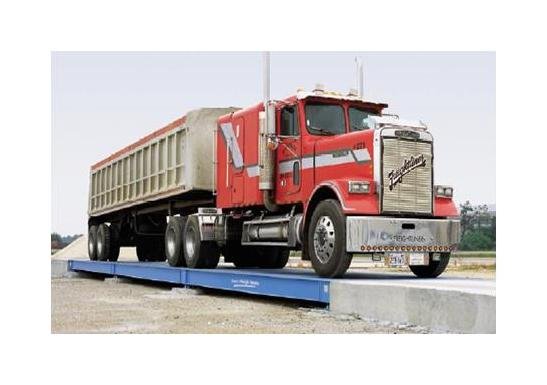

The BridgeMont Heavy Duty Truck Scale BMC Series is a robust solution designed for accurate and reliable weighing of commercial vehicles. Built with a concrete deck and featuring flat top design, this motor truck scale is Legal-for-Trade with a CC 97-074 certification and Class IIIL 10,000 Divisions rating. The BMC Series includes premium features such as 75K alloy steel Easy-Post Weigh-Bars® with stainless steel components, surge protection, and AC line protection to ensure longevity and precision. With a capacity of 90,000 lb and factory-calibrated components, this truck scale delivers exceptional performance ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
90,000 lb | 45,000 kg

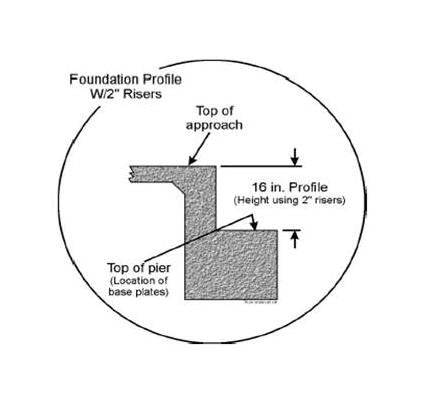

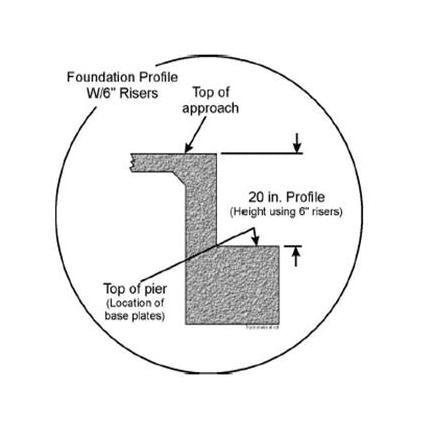

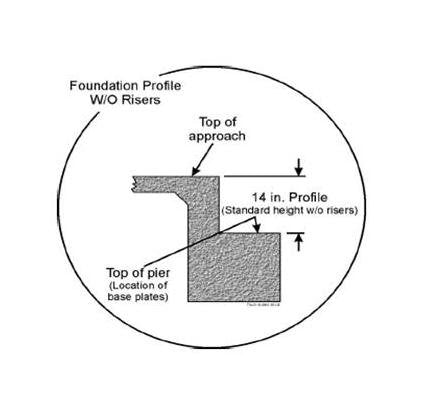

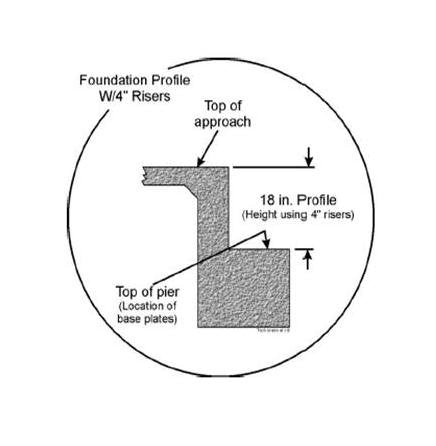

Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMC 2611
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | 8 Inch (in) high single railGuide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT98-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | MSHA Guide Rail - Bolted, powder-painted yellow, 24" high double rail (Not bolted on at factory, will ship on pallet) | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659) | T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660) | T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
25 ft 8 in | 7.8 m
Specifications Shipping Weight
7,446 lb | 3,377 kg
