BridgeMont Heavy-Duty Truck Scale BMS-HD 1210
BridgeMont Heavy-Duty Truck Scale BMS-HD 1210
SKU:TRU-815a2b
Heavy-duty truck scale with steel deck, flat top, and 90,000 lb capacity. Customize options for precision weighing needs.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
BridgeMont Heavy-Duty Truck Scale BMS-HD 1210
$7,499.99
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty Truck Scale BMS-HD 1210
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

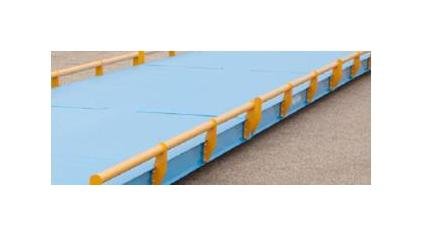

The BridgeMont Heavy-Duty BMS-HD Series Truck Scale is a robust solution designed for motor truck weighing needs. With a steel deck, flat top, and a capacity of 90,000 lb (45,000 kg), this scale provides accurate and reliable measurements. The scale length of 12 ft (3.7 m) and a low profile of 14 in ensure seamless vehicle access and efficient weighing operations. Equipped with various customizable options like riser plates, guide posts, and stainless steel weigh bars, this truck scale can be tailored to specific requirements, making it an ideal choice for both commercial and institutional applications.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
90,000 lb | 45,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-HD 1210
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) - For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider)MSHA Guide rail - Bolted powder-painted yellow, 24" high double rail | Special colors - 3/8" top deck plate | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
12 ft 0 in | 3.7 m
Specifications Shipping Weight
5,280 lb | 2,395 kg
