BridgeMont Heavy-Duty Truck Scale - BMS-HD Series
BridgeMont Heavy-Duty Truck Scale - BMS-HD Series
SKU:TRU-ada0bd
Durable and precise heavy-duty truck scale for industrial applications, with 90,000 lb capacity and 10 ft length.
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Initiate Order
BridgeMont Heavy-Duty Truck Scale - BMS-HD Series
$12,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy-Duty Truck Scale - BMS-HD Series
$12,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

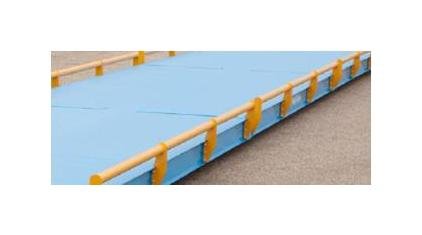

The BridgeMont Heavy-Duty Truck Scale from the BMS-HD Series is a robust solution designed for industrial applications. With a capacity of 90,000 lb | 45,000 kg and a durable steel deck, this scale guarantees accurate and reliable weight measurements. Featuring a 10 ft length and a low-profile design of 14 inches, it offers a sturdy platform for weighing motor trucks. The scale comes with various optional accessories such as riser plates, stainless steel interface cables, anchor bolts, guide posts, and rails to cater to specific requirements, making it a versatile choice for a wide range of industrial weighing needs.
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
90,000 lb | 45,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-HD 1011
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) - For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider)MSHA Guide rail - Bolted powder-painted yellow, 24" high double rail | Special colors - 3/8" top deck plate | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
10 ft 0 in | 3.0 m
Specifications Shipping Weight
5,016 lb | 2,275 kg
