BridgeMont Heavy Duty Truck Scale BMS-HD Series
BridgeMont Heavy Duty Truck Scale BMS-HD Series
SKU:TRU-dcdd63
Rugged, Legal-for-Trade Truck Scale with 75K Alloy Steel Weigh Bars®, Surge Protection, and Customizable Options.
Regular price
$23,999.00
Regular price
Sale price
$23,999.00
Unit price
per
Initiate Order
BridgeMont Heavy Duty Truck Scale BMS-HD Series
$23,999.00
Quantity: 1
Claim Your Seller Account
BridgeMont Heavy Duty Truck Scale BMS-HD Series
$23,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

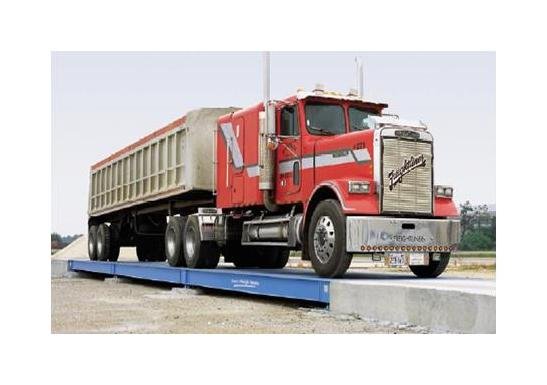

The BridgeMont Heavy Duty Truck Scale BMS-HD Series is a rugged and reliable solution for weighing motor trucks. With a Legal-for-Trade certification (CC 97-074, Class IIIL), this steel deck scale features 75K alloy steel Easi-Post Weigh Bars® with stainless steel components, including surge protection and AC line protection. The pre-assembled sections and factory-calibrated Weigh Bars® ensure easy installation and accurate readings. It boasts a concentrated load capacity (CLC) and dual tandem axel capacity (DTA) of 90,000 lb (45,000 kg). Customizable options include riser plates, guide rails, special lengths, and stainless steel sheathed components, making it versatile for various applications.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
180,000 lb | 90,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
BMS-HD 4012
Specifications Number Of Modules
2
Specifications Options

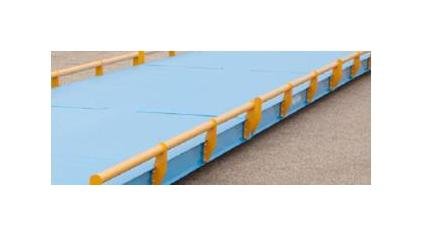

1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027 | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614-0015 | Blue Blanket Warranty (AWT97-501690) - For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8 Inch (in) high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider)MSHA Guide rail - Bolted powder-painted yellow, 24" high double rail | Special colors - 3/8" top deck plate | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034)
Specifications Profile
14 in
Specifications Scale Length
40 ft 3-1/4 in | 12.3 m
Specifications Shipping Weight
16,497 lb | 7,548 kg
