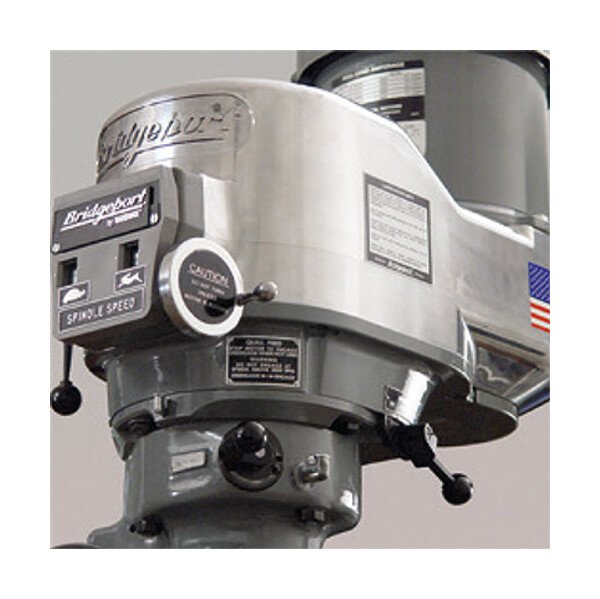

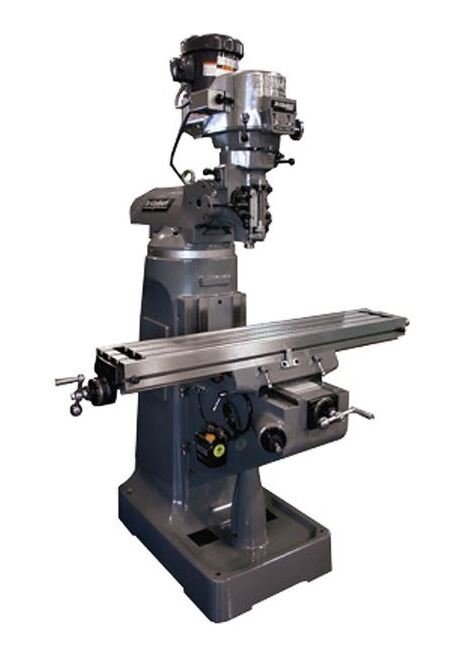

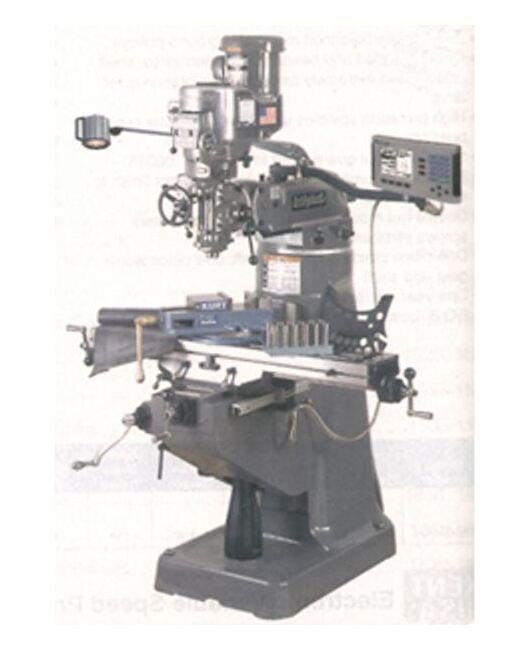

Bridgeport Series I Milling Machine
Bridgeport Series I Milling Machine
SKU:MIL-353ce1
Experience precision and reliability with the Bridgeport Series I Milling Machine. Designed for metalworking shops, it offers versatility and durability.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
Bridgeport Series I Milling Machine
$34,999.99
Quantity: 1
Claim Your Seller Account
Bridgeport Series I Milling Machine
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bridgeport Series I Milling Machine is a reliable and versatile solution designed for metalworking shops worldwide. With a table size of 49 x 9 inches, R8 spindle taper, and innovative airflow cooling design, this mill ensures accuracy and durability. Its extensive features include a power quill feed, optional chrome-plated ways, and gibs for longevity, making it ideal for milling, drilling, and boring. Compliant with Federal/DoD procurement standards, GSA requirements, and Industry-specific certifications, the Series I Standard Mill meets the highest industry needs.
Product Specifications
Features Features
For more than 60 years, the Bridgeport Series I Standard Mill - the original, all-purpose mill - has been the "real thing" in milling, drilling, and boring for metalworking shops throughout the world. Today, the Series I Standard continues to fulfill the industry's need for an accurate, reliable, and versatile mill.The Series I Standard features an innovative airflow cooling design that uses no external fans to prolong bearing life and prevent expansion from heat build-up. A full range of accessories are available, including optional chrome-plated ways and gibs to ensure that the machine will last a lifetime.
Technical Specs Alternating Current Ac Power Rating For Spindle
2 hp | 1.5 kW
Technical Specs Brands
Bridgeport Milling Machine
Technical Specs Drilling Capacity Boring Range Mild Steel Diamet
6 in | 152 mm
Technical Specs Drilling Capacity Milling Capacity Mild Steel
3/4 in | 19 mm
Technical Specs Drilling Capacity Power Quill Feed
3/4 in | 19 mm
Technical Specs Drilling Capacity Quill Diameter
3.375 in | 86 mm
Technical Specs Drilling Capacity Spindle Diameter
1.875 in | 48 mm
Technical Specs Federate Range X Y 01 To 35 Ipm
2 to 889 mm/min
Technical Specs Height Above Floor Maximum
47.25 in | 1200 mm
Technical Specs Knee Travel Z Axis
16 in | 406 mm
Technical Specs Low Spindle Speeds
50 to 500 rpm
Technical Specs Optional Spindle Taper
#30 ISO | Tool Holder Erickson Quick-Change #30; ISO
Technical Specs Positioning Auto X Y 100 Ipm
2540 mm/min
Technical Specs Positioning Manual X Y 100 Ipm
2540 mm/min
Technical Specs Positioning Minimum Increment
0.0001 in | 0.003 mm
Technical Specs Power Capacity
4 KVA
Technical Specs Power Quill Feed
0.0015 in/rev | 0.038 mm
Technical Specs Quill Travel
5 in | 127 mm
Technical Specs Ram Travel
12 in | 305 mm
Technical Specs Saddle Travel Y Axis
12 in | 305 mm
Technical Specs Shipping Weight
2075 lb | 941 kg
Technical Specs Space And Weight Floor Area
8.3 x 5.3 ft | 8.3 x 7.8 ft | 2.53 x 1.62 m | 2.53 x 2.4 m
Technical Specs Space And Weight Height
7.04 ft | 2.15 m
Technical Specs Speed Range Manual Adjust
0.003 in/rev | 0.006 in/rev | 0.076 mm | 0.152 mm
Technical Specs Spindle Speeds
500 to 4200 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Size
49 x 9 in | 1245 x 299 mm
Technical Specs Table To Spindle Nose Gage Line Maximum
18.25 in | 463 mm
Technical Specs Table To Spindle Nose Gage Line Minimum
2.5 in | 64 mm
Technical Specs Table Travel X Axis With Power Feed
36 in | 914 mm
Technical Specs Table T Slot Size
0.625 in | 16 mm
Technical Specs Throat Distance Maximum
18.75 in | 476 mm
Technical Specs Throat Distance Minimum
6.75 in | 171 mm
Technical Specs Voltage
208 V | 230 V | 460 V
Technical Specs Working Surface
49 x 9 in | 1245 x 299 mm
