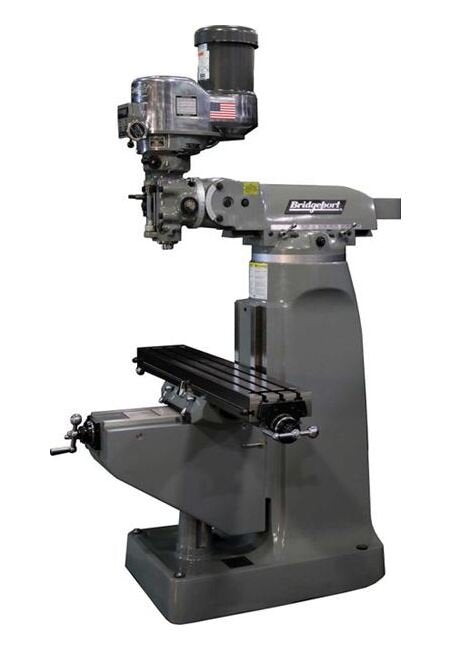

Bridgeport Series I Milling Machine
Bridgeport Series I Milling Machine
SKU:MIL-1de7d2
High-performance milling machine with chrome-plated ways, 3 hp spindle, and NFPA/NEMA-12 electrics for precision machining.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
Bridgeport Series I Milling Machine
$28,999.00
Quantity: 1
Claim Your Seller Account
Bridgeport Series I Milling Machine
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hardinge Bridgeport Series I Standard Package 4 Milling Machine is a top choice for precision machining, boasting a durable design with chrome-plated ways and gibs for long-lasting performance. With a powerful 3 hp spindle, 2-axis digital readout, and NFPA/NEMA-12 compliant electrics, this machine ensures accuracy and efficiency in milling operations. It meets federal procurement standards and is the trusted choice for industries demanding reliability and versatility.
Product Specifications
Features Features
One-Shot LubricationSystemChrome-Plated Ways and GibsColorâMachine Tool Gray2 or 3-Axis Digital ReadoutPower Drawbar for R-8 or #30; Quick-Change SpindlePower Drawbar for R-8 or #30; Quick-Change SpindleWorklight ElectricsâNFPA/NEMA-12 Standards, UL listed
Note Note
You must specify voltage at checkout208V 60HZ230V 60HZ460V 60HZ
Technical Specs Alternating Current Ac Power Rating For Spindle
2 hp | 1.5 kW
Technical Specs Brands
Bridgeport Milling Machine
Technical Specs Floor Space
7 x 10 in | 2.13 x 3.0 mm
Technical Specs Height
87 in | 2210 mm
Technical Specs Height Above Floor Maximum
47.25 in | 1200 mm
Technical Specs Knee Travel Z Axis
16 in | 406 mm
Technical Specs Low Spindle Speeds
60 to 500 rpm
Technical Specs Maximum Weight Of Workpiece
750 lb | 340 kg
Technical Specs Power Quill Feed
0.0015 in/rev | 0.038 mm
Technical Specs Quill Travel
5 in | 127 mm
Technical Specs Ram Travel
12 in | 305 mm
Technical Specs Saddle Travel Y Axis
12 in | 305 mm
Technical Specs Speed Range Manual Adjust
0.003 in/rev | 0.006 in/rev | 0.076 mm | 0.152 mm
Technical Specs Spindle Speeds
500 to 4200 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Size
9 x 49 in
Technical Specs Table Travel X Axis Without Power Feed
31 in | 787 mm
Technical Specs Table Travel X Axis With Power Feed
36 in | 914 mm
Technical Specs Table T Slot Size
0.625 in | 16 mm
Technical Specs Throat Distance Maximum
18.75 in | 476 mm
Technical Specs Throat Distance Minimum
6.75 in | 171 mm
Technical Specs Weight
1930 lb | 875 kg
Technical Specs Work Table
1245 x 299 mm
