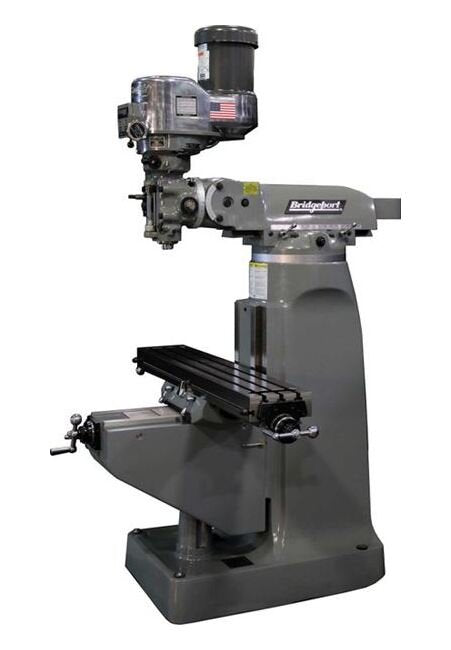

Bridgeport Series I Milling Machine
Bridgeport Series I Milling Machine
SKU:MIL-d0997d
Powerful Bridgeport Series I Milling Machine with precision features, ideal for industrial applications.
Regular price
$18,500.00
Regular price
Sale price
$18,500.00
Unit price
per
Initiate Order
Bridgeport Series I Milling Machine
$18,500.00
Quantity: 1
Claim Your Seller Account
Bridgeport Series I Milling Machine
$18,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bridgeport Series I Standard Package 2 Milling Machine is a powerhouse in precision machining. With a table size of 9 x 49 inches, spindle speeds ranging from 500 to 4200 rpm, and a robust power quill feed of 0.0015 in/rev, this machine ensures optimal performance. Featuring a chrome-plated ways and gibs, 2 or 3-axis digital readout, and a power drawbar for quick-change spindles, it combines efficiency with convenience. Compliant with NFPA/NEMA-12 and UL standards, this machine offers one-shot lubrication and a worklight for enhanced safety. Specify your voltage and meet institutional procurement needs with this industrial-grade milling solution.
Product Specifications
Features Features
One-Shot LubricationSystemChrome-Plated Ways and GibsColorâMachine Tool Gray2 or 3-Axis Digital ReadoutPower Drawbar for R-8 or #30; Quick-Change SpindlePower Drawbar for R-8 or #30; Quick-Change SpindleWorklight ElectricsâNFPA/NEMA-12 Standards, UL listed
Note Note
You must specify voltage at checkout208V 60HZ230V 60HZ460V 60HZ
Technical Specs Alternating Current Ac Power Rating For Spindle
2 hp | 1.5 kW
Technical Specs Brands
Bridgeport Milling Machine
Technical Specs Floor Space
7 x 10 in | 2.13 x 3.0 mm
Technical Specs Height
87 in | 2210 mm
Technical Specs Height Above Floor Maximum
47.25 in | 1200 mm
Technical Specs Knee Travel Z Axis
16 in | 406 mm
Technical Specs Low Spindle Speeds
60 to 500 rpm
Technical Specs Maximum Weight Of Workpiece
750 lb | 340 kg
Technical Specs Power Quill Feed
0.0015 in/rev | 0.038 mm
Technical Specs Saddle Travel Y Axis
12 in | 305 mm
Technical Specs Speed Range Manual Adjust
0.003 in/rev | 0.006 in/rev | 0.076 mm | 0.152 mm
Technical Specs Spindle Speeds
500 to 4200 rpm
Technical Specs Table Size
9 x 49 in
Technical Specs Table Travel X Axis Without Power Feed
31 in | 787 mm
Technical Specs Table Travel X Axis With Power Feed
36 in | 914 mm
Technical Specs Table T Slot Size
0.625 in | 16 mm
Technical Specs Throat Distance Maximum
18.75 in | 476 mm
Technical Specs Throat Distance Minimum
6.75 in | 171 mm
Technical Specs Weight
1930 lb | 875 kg
Technical Specs Work Table
1245 x 299 mm
