Bridgeport Series I Variable Speed Milling Machine
Bridgeport Series I Variable Speed Milling Machine
SKU:MIL-8f7bcb
Powerful Bridgeport Series I Variable Speed Milling Machine for precise machining tasks. Features quick-tilt headstock and push-button speed control. Backed by 2-year warranty.
Regular price
$13,499.00
Regular price
Sale price
$13,499.00
Unit price
per
Initiate Order
Bridgeport Series I Variable Speed Milling Machine
$13,499.00
Quantity: 1
Claim Your Seller Account
Bridgeport Series I Variable Speed Milling Machine
$13,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

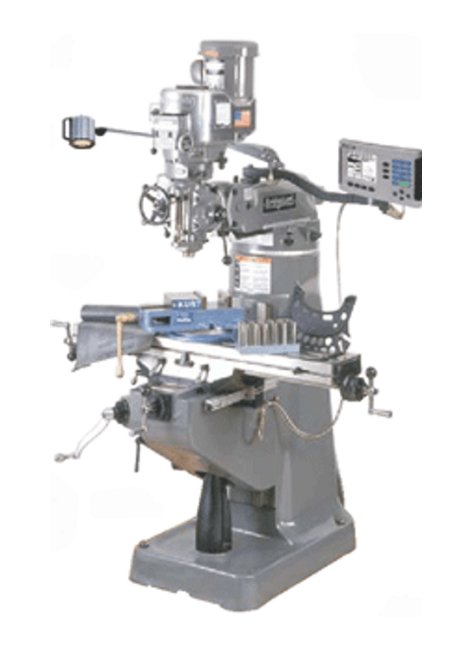

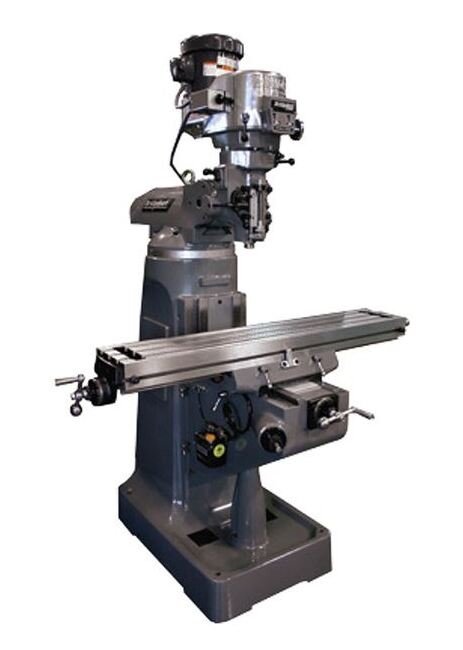

The Bridgeport Series I Variable Speed Milling Machine Package is a versatile and powerful milling machine designed for precision machining tasks. With a robust 3HP spindle motor and chrome dovetailways, this machine offers exceptional stability and accuracy. It features a quick-tilt headstock for horizontal milling, push-button speed control, and a digital spindle tachometer for precise speed adjustments. The machine also includes a quick reversing tapping feature, making hole threading effortless. Backed by a 2-year warranty, this milling machine is ideal for both consumer and institutional use, meeting the highest standards of performance and quality.
Product Specifications
Features Features

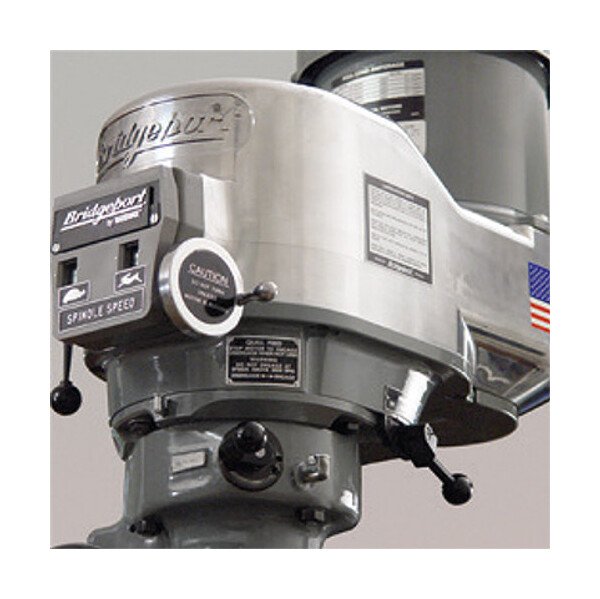

Chrome dovetailways and gibbsWay CoverTooltrayHalogen LampThis mill is further fortified with a quick-tilt headstock for horizontal milling, 1 HP brushless motor, a multi-function digital depth scale on the quill, push-button speed control and digital spindle tachometer.The quick reversing tapping feature also makes hole threading simple. Just put the machine in "tapping mode", start the tap, and when the thread is completed, push the button at the end of the rack levers and the spindle reverses.The back-lit digital tachometer tells you the precise spindle speed for matching tooling and material.Head rotates 90º Left & right2 Year Warranty.
Technical Specs Alternating Current Ac Power Rating For Spindle
2 hp | 1.5 kW
Technical Specs Brands
Bridgeport Milling Machine
Technical Specs Drilling Capacity Boring Range Mild Steel Diamet
6 in | 152 mm
Technical Specs Drilling Capacity Milling Capacity Mild Steel
3/4 in | 19 mm
Technical Specs Drilling Capacity Power Quill Feed
3/4 in | 19 mm
Technical Specs Drilling Capacity Quill Diameter
3.375 in | 86 mm
Technical Specs Drilling Capacity Spindle Diameter
1.875 in | 48 mm
Technical Specs Federate Range X Y 01 To 35 Ipm
2 to 889 mm/min
Technical Specs Height
47.25 in | 1200 mm
Technical Specs High Speed Range
500 to 4200 rpm
Technical Specs Knee Travel Z Axis
16 in | 406 mm
Technical Specs Low Speed Range
60 to 500 rpm
Technical Specs Net Weight
1930 lb | 875 kg
Technical Specs Optional Spindle Taper
Spindle Taper #30; ISO | Tool Holder Erickson Quick-Change #30; ISO
Technical Specs Positioning Auto X Y 100 Ipm
2540 mm/min
Technical Specs Positioning Manual X Y 100 Ipm
2540 mm/min
Technical Specs Positioning Minimum Increment
0.0001 in | 0.003 mm
Technical Specs Power Capacity
4 KVA
Technical Specs Power Quill Feed
0.0015 in/rev | 0.038 mm
Technical Specs Quill Travel
5 in | 127 mm
Technical Specs Ram Travel
12 in | 305 mm
Technical Specs Saddle Travel Y Axis
12 in | 905 mm
Technical Specs Shipping Weight
2075 lb | 941 kg
Technical Specs Space And Weight Floor Area
8.3 x 5.3 ft | 8.3 x 7.8 ft | 2.53 x 1.62 m | 2.53 x 2.4 m
Technical Specs Space And Weight Height
7.04 ft | 2.15 m
Technical Specs Speed Range Manual Adjust
0.003 in/rev | 0.006 in/rev | 0.076 mm | 0.152 mm
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Taper
R8
Technical Specs Table Size
49 x 9 in | 1245 x 229 mm
Technical Specs Table To Spindle Nose Gage Line Maximum
18.25 in | 463 mm
Technical Specs Table To Spindle Nose Gage Line Minimum
2.5 in | 64 mm
Technical Specs Table Travel X Axis With Power Feed
36 in | 914 mm
Technical Specs Table T Slot Size
0.625 in | 16 mm
Technical Specs Throat Distance Maximum
18.75 in | 476 mm
Technical Specs Throat Distance Minimum
6.75 in | 171 mm
Technical Specs T Slots Centers
2.5 in | 64 mm
Technical Specs Voltage
208 V | 230 V | 460 V
