Bright Stainless Steel Finishing Plate Plug - 2.0" Nominal Size (22 Gauge)
Bright Stainless Steel Finishing Plate Plug - 2.0" Nominal Size (22 Gauge)
SKU:HIG-01f68a
Enhance your space with the durable 140-5 Series Finishing Plate Plug, constructed from high-quality stainless steel for light-duty walking traffic. Measures 2.0" nominal size.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Bright Stainless Steel Finishing Plate Plug - 2.0" Nominal Size (22 Gauge)
$12.99
Quantity: 1
Claim Your Seller Account
Bright Stainless Steel Finishing Plate Plug - 2.0" Nominal Size (22 Gauge)
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your space with the durable 140-5 Series Finishing Plate Plug, constructed from high-quality 22 gauge stainless steel. Ideal for light-duty walking traffic, this beveled plate offers a sleek aesthetic while providing reliable functionality. Measuring 3 inches in stainless steel cover size and 2.0 inches in nominal size, this finishing plate plug ensures a secure fit and lasting performance. Designed for easy installation, it can withstand a range of uses, with expanded and relaxed diameters for adaptability.

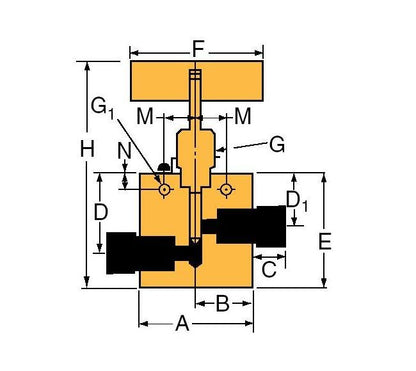

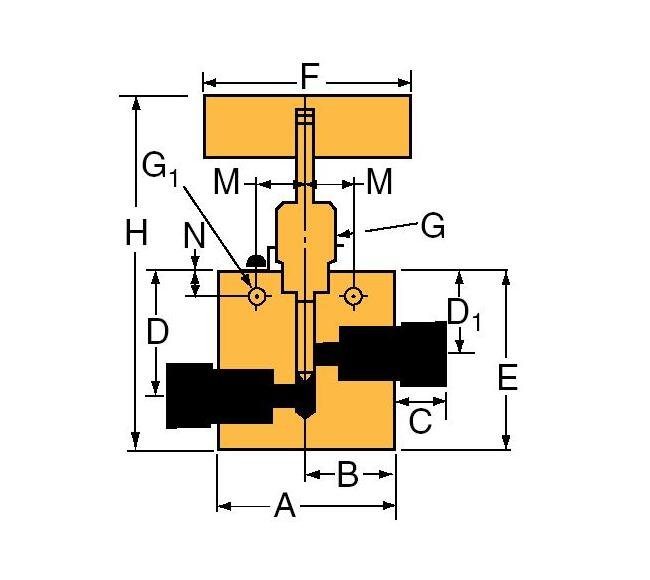

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX10
Specifications C Length
0.62 in | 15.75 mm
Specifications D1 Height
2.25 in | 57.15 mm
Specifications D Height
3.00 in | 76.20 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.00 in | 177.80 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.516 in | 13.11 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.80
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
