Bronze Air, Gas, or Water Valve Reducer - DIN Specialty Valve

Name: Bronze Air, Gas, or Water Valve Reducer - DIN Specialty Valve
Brand: World Wide Metric, Inc.
SKU: VAL-c6546a
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-c6546a

Premium Bronze Valve Reducer for Air, Gas, or Water. DIN Standard Compliant for Institutional Use.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve is a high-performance solution designed for air, gas, or water applications. Crafted with precision using bronze body material and synthetic disc & seat materials, this valve ensures reliable and durable performance. With a reducer pressure range of 1.5 - 12 bar and a sturdy brass stem, it offers optimal control and longevity. Compliant with DIN standards and featuring flanges according to DIN2501, this valve is ideal for industrial and institutional setups requiring efficiency and quality.

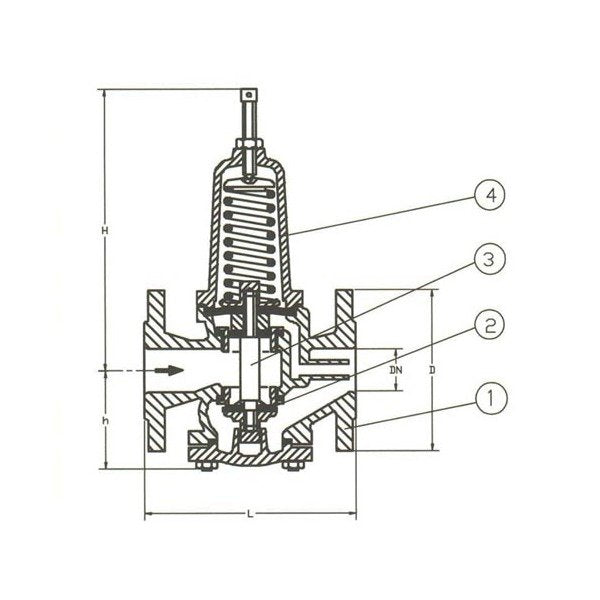

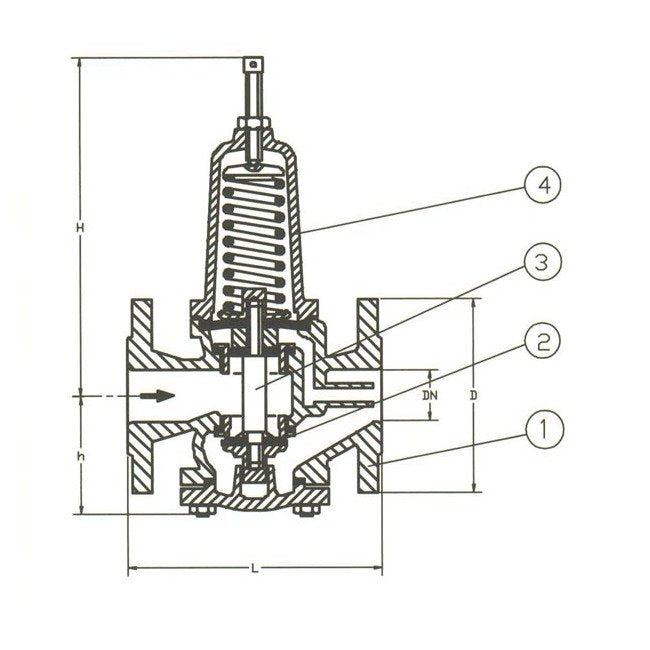

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

85 mm

Specifications D

115 mm

Specifications Disc Material

Synthetic Material

Specifications H

141 mm

Specifications Hole Diameter

14 mm

Specifications L

160 mm

Specifications Max Inlet Pressure

30/25 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 12 bar

Specifications Seat Material

Synthetic Material

Specifications Size

025

Specifications Stem Material

Brass

Specifications Weight

12.3 kg

Bronze Air, Gas, or Water Valve Reducer - DIN Specialty Valve
