Premium Bronze Reducing Valve for Air, Gas or Water - DIN Certified

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve is a robust solution designed for handling air, gas, or water applications. Constructed with durable Bronze body and Brass stem, equipped with Synthetic Disc & Seat materials, this valve ensures reliable performance. With a reducer pressure range of 1.5 - 6 bar, it maintains system efficiency while meeting DIN 17052 and DIN 17672 standards. The Spring actuators offer precise control, making it ideal for industrial environments requiring high-pressure regulation.

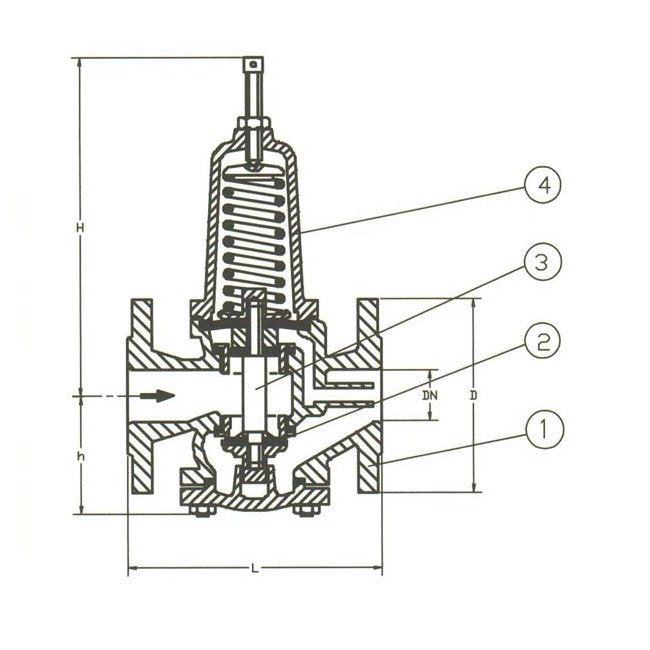

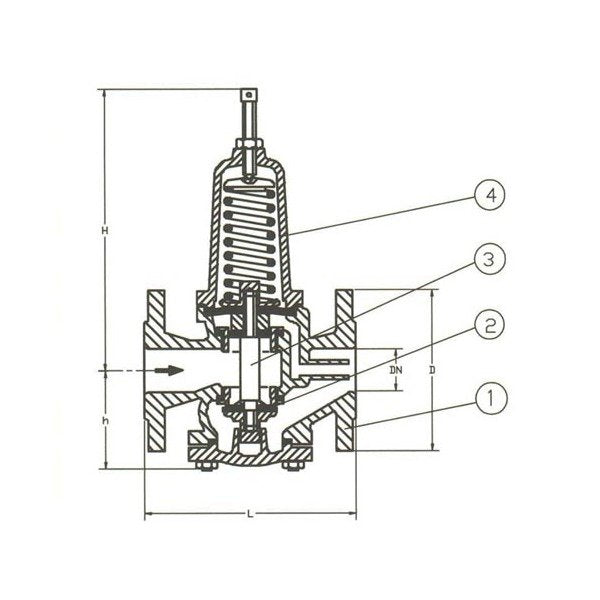

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

180 mm

Specifications D

220 mm

Specifications Disc Material

Synthetic Material

Specifications H

470 mm

Specifications Hole Diameter

18 mm

Specifications L

350 mm

Specifications Max Inlet Pressure

16 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 6 bar

Specifications Seat Material

Synthetic Material

Specifications Size

100

Specifications Stem Material

Brass

Specifications Weight

147.5 kg
